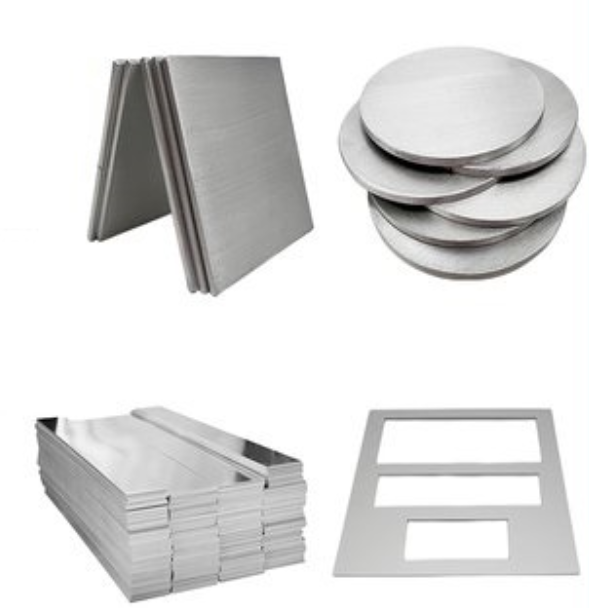

Thickness 0.6mm 2520 Stainless Steel Plate
Uncoiling and leveling
Slitting,
Cutting,
Wire drawing,
Polishing,
Shearing and bending,
Punching,
Rolling,
Embossing
JBL offers custom processing services; inquiries and discussions are welcome.

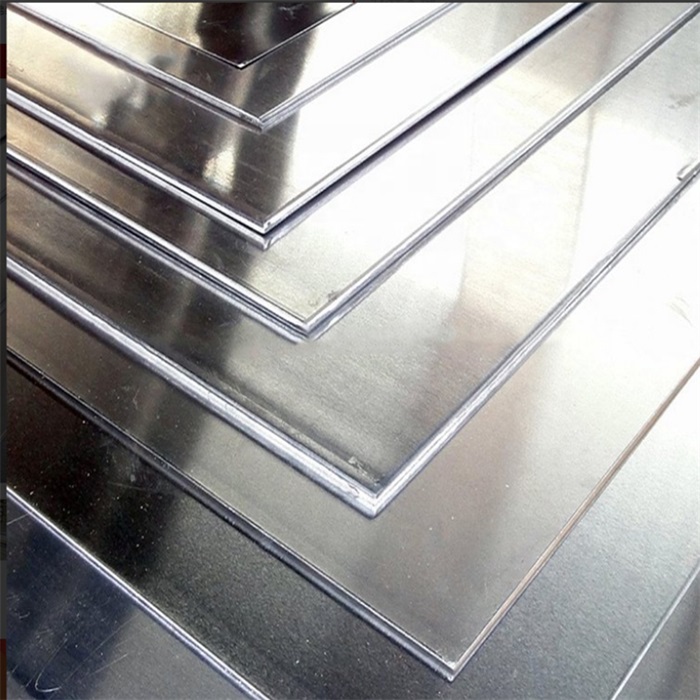

Thickness 0.6mm 2520 Stainless Steel Plate Domestic grade: 0Cr25Ni20 stainless steel plate, American grade: 310S stainless steel plate, also known as 2520 stainless steel plate.
Characteristics of 2520 Stainless Steel Plate：
1) Excellent high-temperature oxidation resistance;
2) Wide service temperature range (below 1200°C);
3) Non-magnetic in the solution-annealed condition;
4) High strength at elevated temperatures.

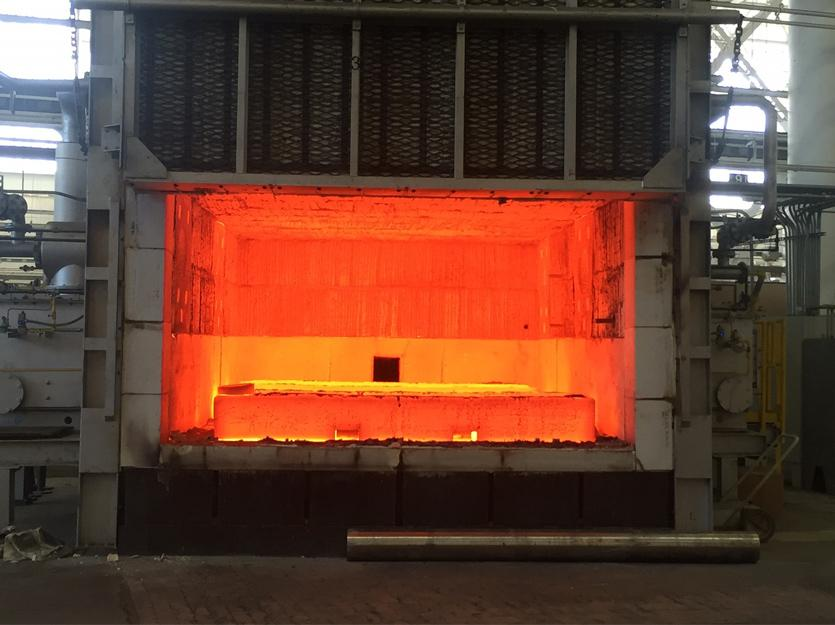

Industrial high-temperature furnace
Heating furnaces, annealing furnaces, heat treatment furnaces, muffle furnaces

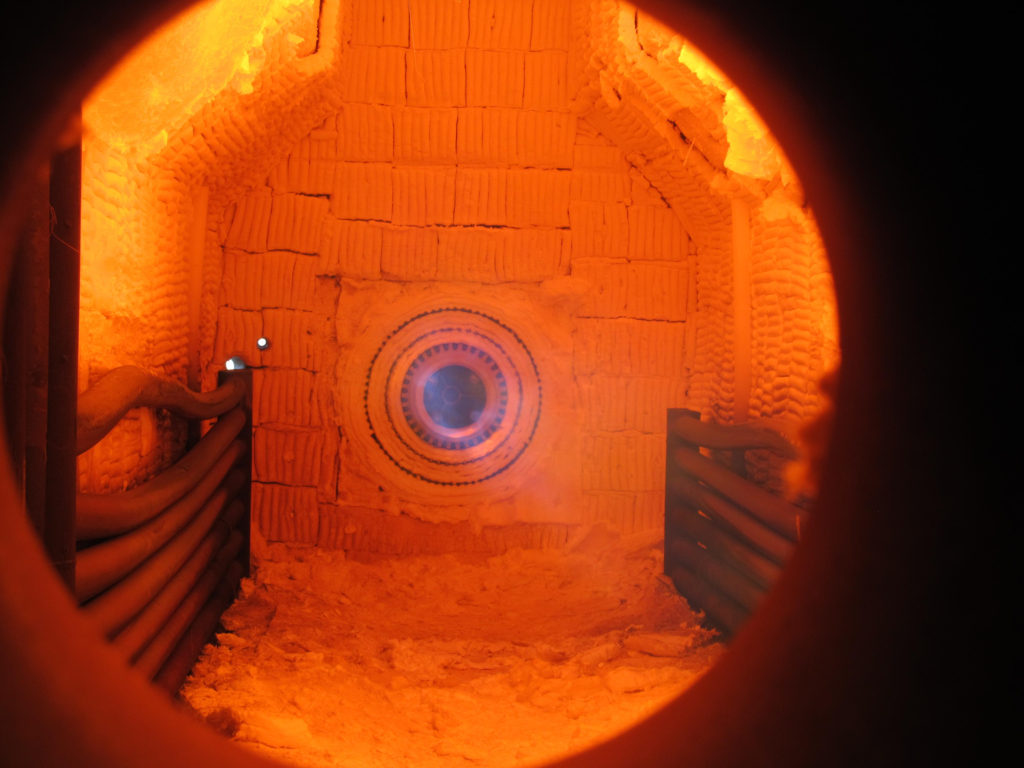

Boiler Combustion Chamber
Boiler components, combustion chambers, furnace chambers, internal furnace supports

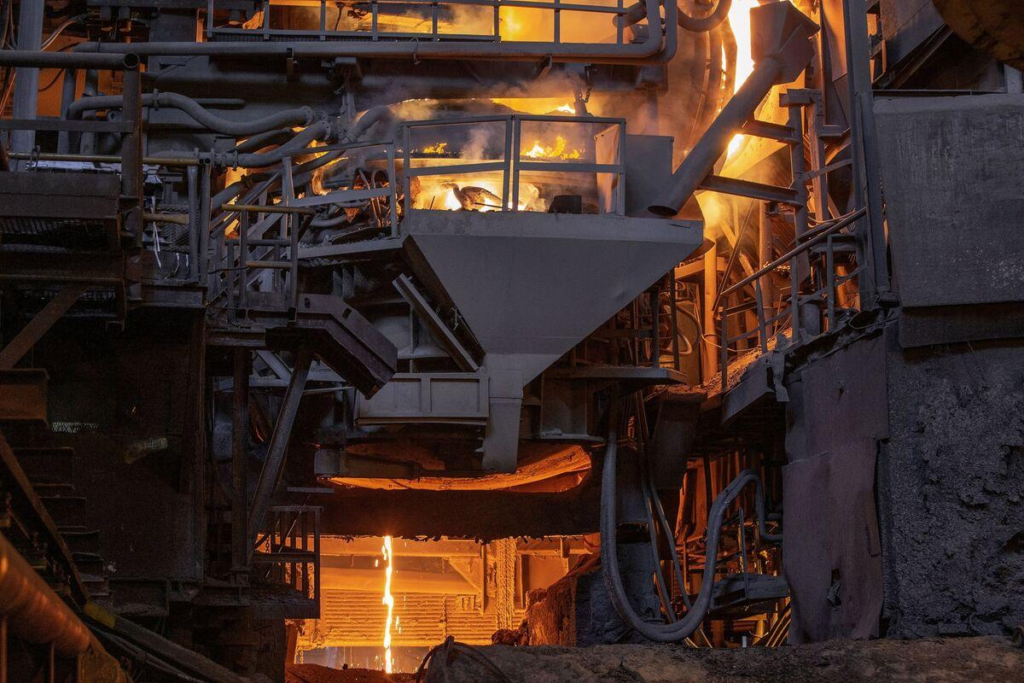

Iron and Steel Metallurgy
Furnace rolls, furnace bottom plates, in-furnace supports, heat treatment fixtures

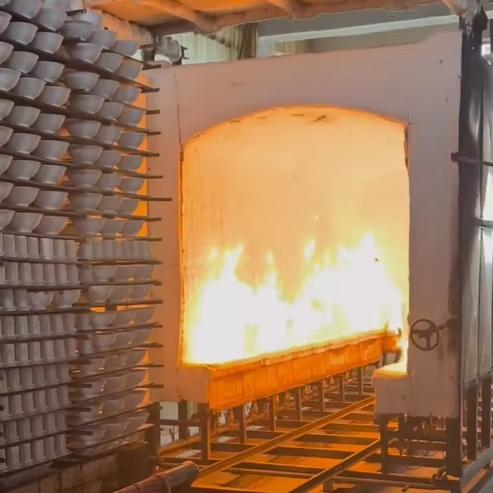

Kiln
Components for rotary kilns, ceramic kilns, and glass furnaces

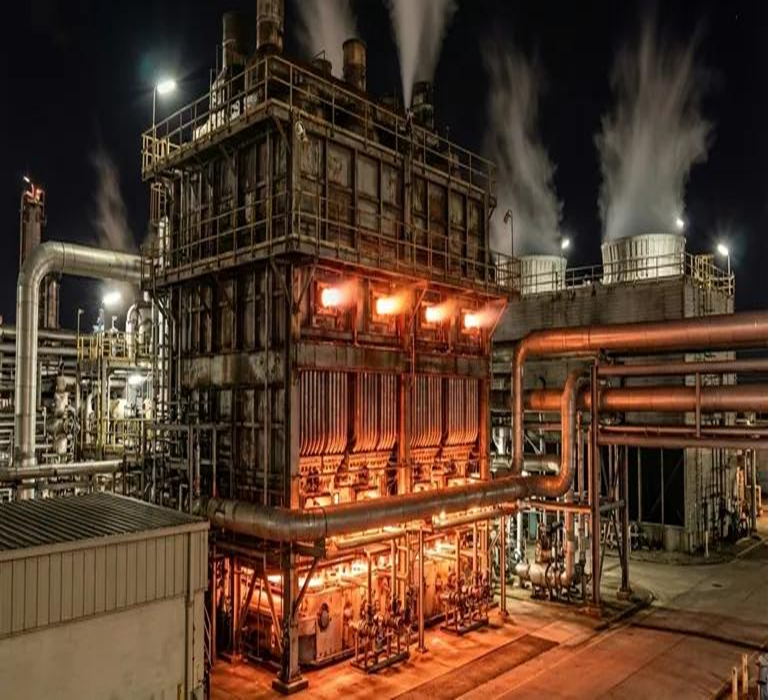

Petrochemicals
Cracking furnace tubes, furnace tube supports, and heating furnace components.

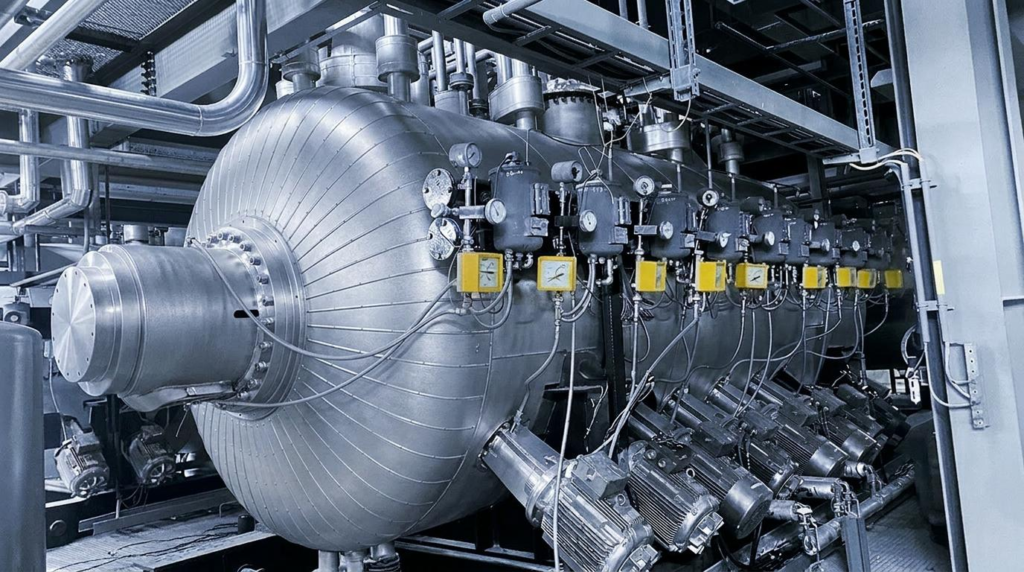

High-temperature chemical processing equipment
Reactors, heat exchangers, and high-temperature piping

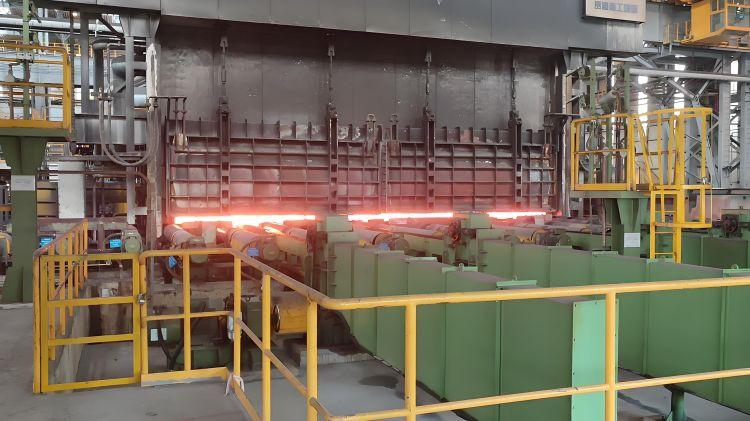

Heat treatment production line
Conveyor belts, trays, material baskets, radiant tubes, furnace internals

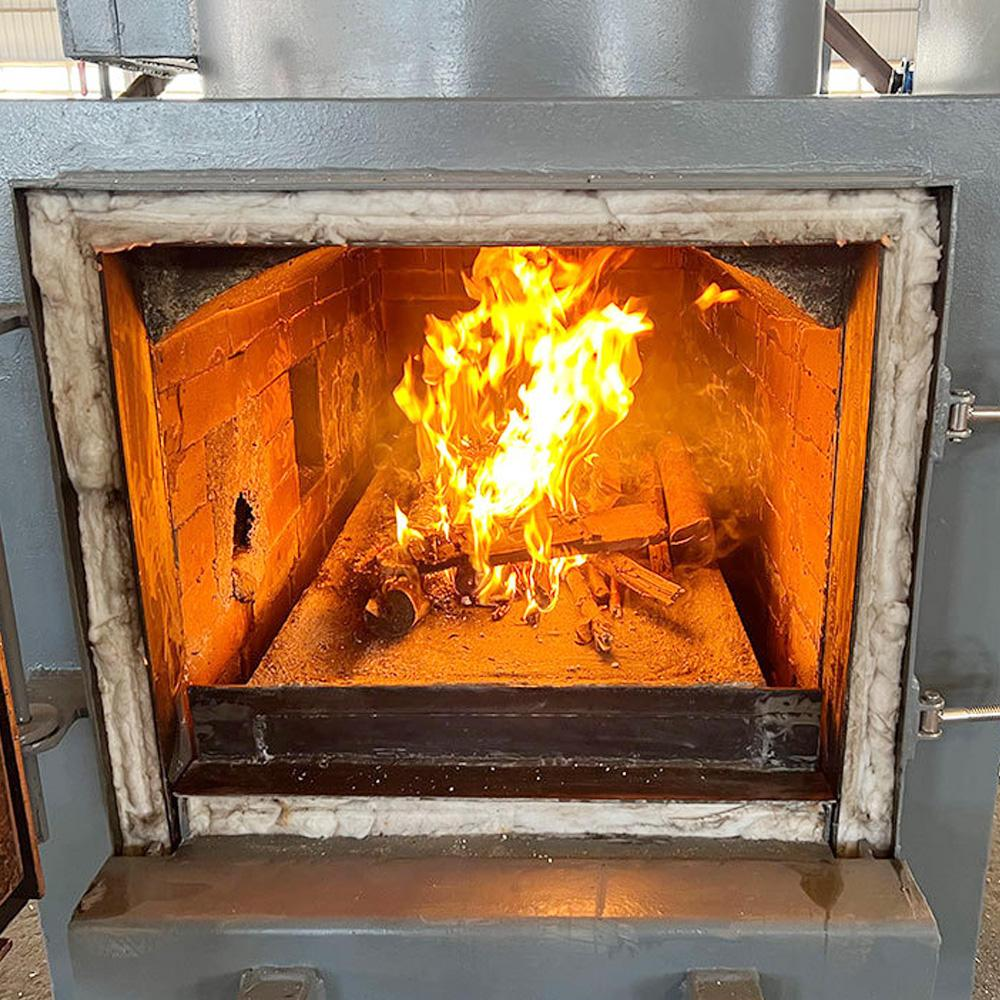

Waste incineration
Incinerators, flues, and high-temperature furnace internals

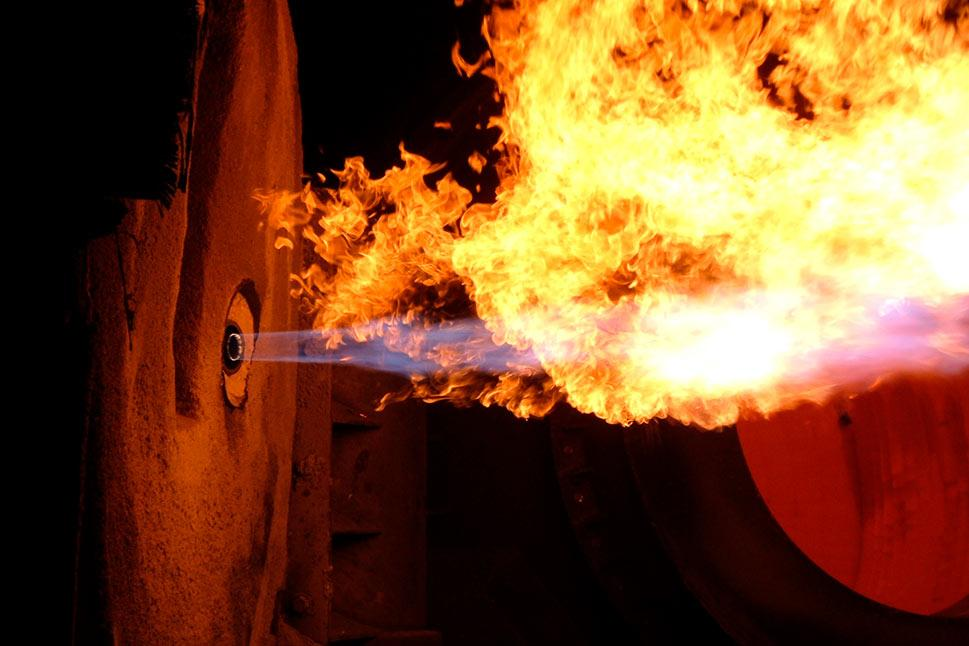

Combustion equipment
Burner, nozzle, combustion chamber

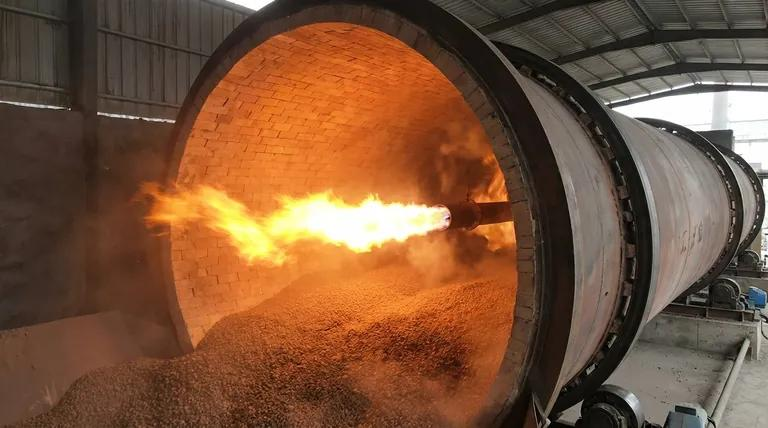

Cement industry
High-temperature furnace and kiln components
Chemical composition:
Chromium (Cr): 24.00% – 26.00%
Nickel (Ni): 19.00% – 22.00%
Carbon (C): ≤ 0.08%
Silicon (Si): ≤ 1.50%
Manganese (Mn): ≤ 2.00%
Phosphorus (P): ≤ 0.045%
Sulfur (S): ≤ 0.030%
Density: 7.98 – 8.0 g/cm³
Coefficient of thermal expansion (20 – 1000°C): 18.4 x 10⁻⁴ /°C
Thermal conductivity (at 500°C): 21.5 W/(m-K)
Mechanical performance parameters:
Tensile strength: ≥ 520 MPa (annealed state)
Yield strength: ≥ 205 MPa
Elongation: ≥ 40%
Hardness: ≤ 187 HB
High-temperature resistance limit: Continuous working temperature ≤ 1150°C, short-term up to 1200°C
Thickness specification：
| Type | Thickness range | Typical thickness example (mm) | Application scenarios |
| Cold-rolled sheet | 0.09-6.0 | 0.5、1.0、1.5、2.0、3.0 | Protective covers for precision instruments, heat exchanger fins |
| Hot-rolled medium and heavy plates | 3.0-20 | 3.0,4.0, 5.0,10.0,12.0 | Reactor lining, flue lining |
| Thick plate | 20-160 | 20,25,30,40,50,60 | High-pressure boiler furnace liner, cracking furnace support component |
| Extra-thick custom board | >100(Customization required) | 120、160 | Special high-temperature equipment (Welding performance should be noted) |

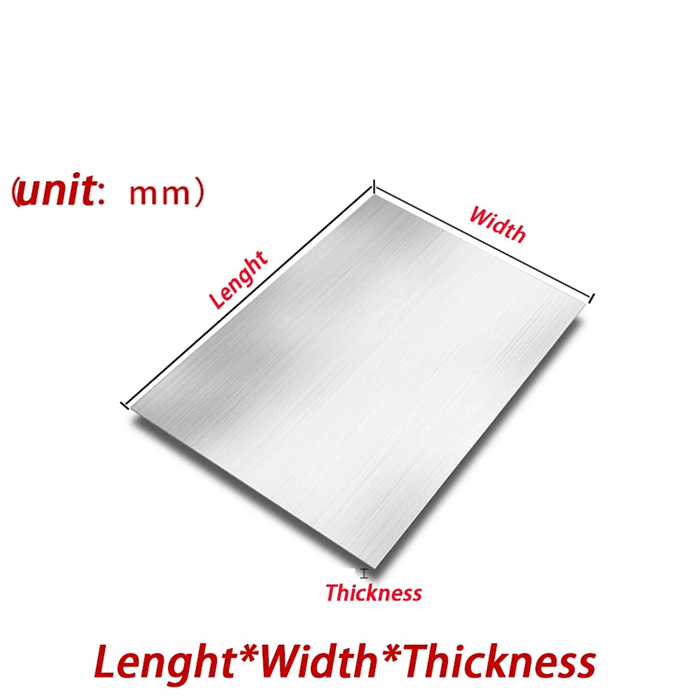

Width and length specifications：
Standard width: 1000mm
1219mm,1500mm.1800mm,2000mm
Standard lengths: 2000mm, 2438mm, 3000mm6000mm
