NM360 Abrasion Resistant Steel Plate Hot Rolled 6-80mm Thickness is a high-quality material. It performs stably during cutting and processing and can be precisely machined into various shapes of wear-resistant parts according to design requirements.
Why purchase wear-resistant plates 360 from the JBL company in China?
Lower production costs
Competitive product prices
Stable supply, customization support
Reliable quality, factory inspection
A series of services for raw material production and processing
Rich export experience
Support for deep processing to reduce delivery cycle

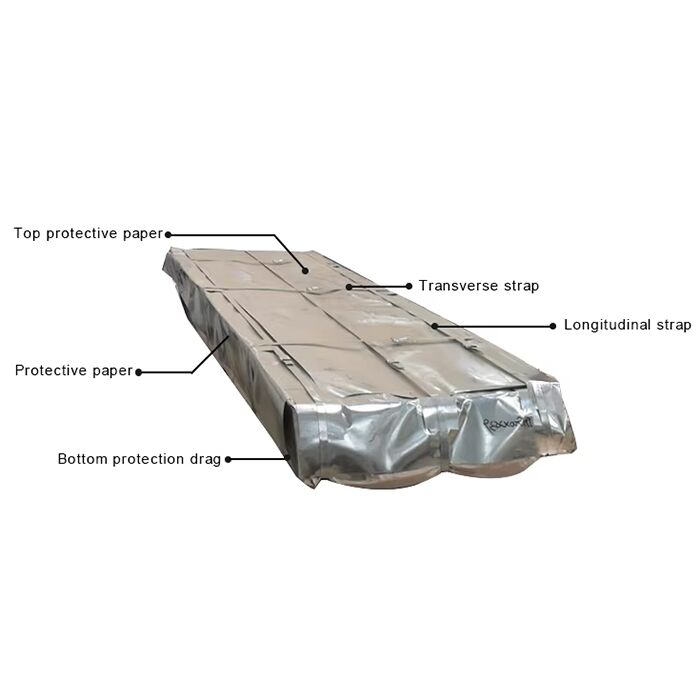

Packaging, marking, flexible customization
Contact：Yancy
15503723682
[email protected]
NM360 Abrasion Resistant Steel Plate Hot Rolled 6-80mm Thickness
NM360 Abrasion Resistant Steel Plate Hot Rolled 6-80mm Thickness complies with a series of industry standards, such as hardness, toughness, and impact resistance, and all indicators meet or exceed national standards, ensuring the quality stability of the wear-resistant plate and providing users with reliable performance guarantees. JBLstainless offers comprehensive processing services, such as drawing processing, cutting, and bending, to meet the diverse needs of users. 360 wear-resistant plates usually adopt special alloy components e heat treatment processes, enabling the steel plate to maintain a certain degree of toughness while significantly increasing its surface hardness. Although its name contains “360”, it does not mean that it can wear without any blind spots at 360 degrees. Instead, it represents its specific model and performance standards.
Price transparency: Cost advantage. For Chinese-made wear-resistant plates under the same hardness level (such as NM400/NM500), the production cost can be reduced by 15% – 30%. This is attributed to the complete upstream raw material supply chain (high self-sufficiency rate of iron ore and alloy elements).
Technical breakthrough: Through quenching and tempering heat treatment and micro-alloying technology, the collaborative problem of high strength and high toughness has been overcome.
Strong deep processing: “Design-based processing” one-stop service.
Delivery speed: The delivery cycle has been shortened to 45 days or even shorter, significantly reducing the secondary processing costs and inventory pressure for overseas buyers.
Capacity scale: China has the world’s largest reserve of wear-resistant steel production capacity.
Stable delivery: Large manufacturers have thousands of tons of spot stocks in multiple specifications (NM360-NM600).
Good wear resistance: Good toughness and plasticity, high hardness, not prone to wear.
Good impact performance: Capable of cutting, bending, welding, etc.
Not prone to corrosion: Protects the rust layer and is not easily corroded by the atmosphere.
Good welding and cutting performance: Welding and cutting characteristics, strong toughness, plasticity, forming, etc., like steel.
Not prone to deformation: Can withstand high pressure, does not deform during cold bending, expansion, flattening without cracks, and can be used for various complex deformations and mechanical processing.
Fabricated Wear Components
Chute
Conveyor Parts
Cutting Edge
Bucket Parts
Hopper
Protective Plate
Truck Body Liner
Wear Liner
Screen Plate
NM360 Abrasion Steel Plate Chemical Component:
Component | Factory | C | Si | Mn | P | S | Cr | Mo | Ni | B |
Mark | JBL | |||||||||
NM360 | ≤0.25 | ≤0.70 | ≤1.30 | ≤0.025 | ≤0.010 | ≤1.4 | ≤0.50 | ≤1.00 | ≤0.004 |
NM360 Mechanical properties :
| Mark | Thickness/mm | Tensione | percentage elongation after fracture | Energy absorption by impact at -20℃ | Surface Brinell hardness HBW |
| NM360 | ≦80 | ≧1100 | ≧12 | ≧24 | 330-390 |
Heat treatment:
High-temperature tempering, quenching + tempering (quenching and tempering).
NM360 Plate size:
Thickness: 6mm – 120mm
Width:1500mm – 2200mm
Length: 3000mm – 12000mm
Serial Number | Inspection Item | Sample number | Sampling method | Test method |
1 | stretch | 1 | GB/T2975 | GB/T228 |
2 | shock | 3 | GB/T2975 | GB/T229 |
3 | bend | 1 | GB/T2975 | GB/T232 |
4 | hardness | 1 | GB/T2975 | GB/T231 |
Inspection Rules:
1. The inspection and acceptance of Wear Resistant Steel Plate Nm360 shall be conducted by the quality supervision department of the supplier.
2. The inspection and testing of NM360 High strength abrasion resistant steel plate shall be carried out piece by piece for mechanical properties. The supplementary inspection requirements should be conducted based on the same furnace number, the same thickness, and the same delivery condition.
3. Brinell Hardness (HBW) inspection shall be carried out in accordance with the national standard GB/T231. The surface of the steel plate shall be machined by 1.0 – 2.5 millimeters, and then the hardness shall be tested on this surface.
Production Technology:
Steelmaking—LF refining / VD vacuum degassing—Continuous Casting—Hot Rolling—Quenching—Tempering—Hardness and Ultrasonic Testing—Finished product packaging for export
Why is NM360 so durable?
High hardness
≈ 360 HBW
Good toughness
Impact-resistant
What are the key details to keep in mind when purchasing Abrasion Resistant Steel Sheet Nm360?
What advantages does the nm360 steel have compared to other materials?
How to maintain and care for the Heavy Duty Steel Plate Impact Resistant Plate NM360 1m X 2m?
What factors influence the price of the JBL nm360 steel plate in China?
Does the 10mm Carbon Steel Wear NM360 Wear Resistant Steel Sheet have environmental-friendly properties?
What are the limitations of NM360?
Which foreign brands can be replaced by NM360?
How long is the wear-resistant lifespan of NM360 6mm 10mm 12mm 15mm 20mm Wear Resistance Steel Sheet?
It can typically extend the service life by 3 to 5 times compared to ordinary structural steel.
Is the surface hardness of Nm360 Abrasion Resistant Steels Plate Hot Rolled uniform?
Sì
What are the tolerance standards for NM360 Abrasion Resistant Steel Plate 6mm 10mm 20mm 40mm Hot Rolled Steel Sheet?
| 6 mm | ±0.3～0.5 mm |
| 10 mm | ±0.4～0.6 mm |
| 20 mm | ±0.5～0.8 mm |
| 40 mm | ±0.8～1.2 mm |
How to identify counterfeit NM360?
Will NM360 rust if stored for a long time?
Yes，Slight oxidation, but does not affect usage.
How to recommend the thickness of NM360 based on the working conditions?
Light wear， light load： 4–8 mm NM360
Moderate wear, continuous：8–16 mm NM360
Medium-high wear, certain impact ：16–25 mm NM360
High impact, heavy wear： 25–40 mm NM360 or upgraded grade
Il controllo completo sui prodotti ci permette di garantire ai nostri clienti i prezzi e il servizio migliori. Contattateci per un preventivo gratuito, JBLSTEEL vi fornirà la soluzione giusta per il vostro progetto.
