Plate Sheet Hot Rolled Wear Resistant Abrasion Resistant Mild Steel NM450.
The weight of NM450, calculated based on a density of 7.85g/cm³:
Costo = (Material unit price × Weight + Processing fee + Loss + Logistics) ÷ Yield rate
Core formula: Weight (kg) = Length (m) × Width (m) × Thickness (mm) × 7.85
Derivation logic: Based on volume × density (7850kg/m³), after unit conversion, it simplifies to the above coefficient.
Calculation example: 16mm thick × 2m wide × 6m long steel plate, weight = 2 × 6 × 16 × 7.85 = 1507.2kg
Secondary processing fee: Approximately 1.5 – 3 yuan/kg.
Loss reserve: Loss is usually ≤ 3%

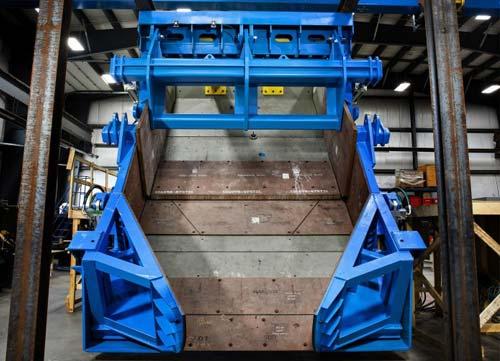

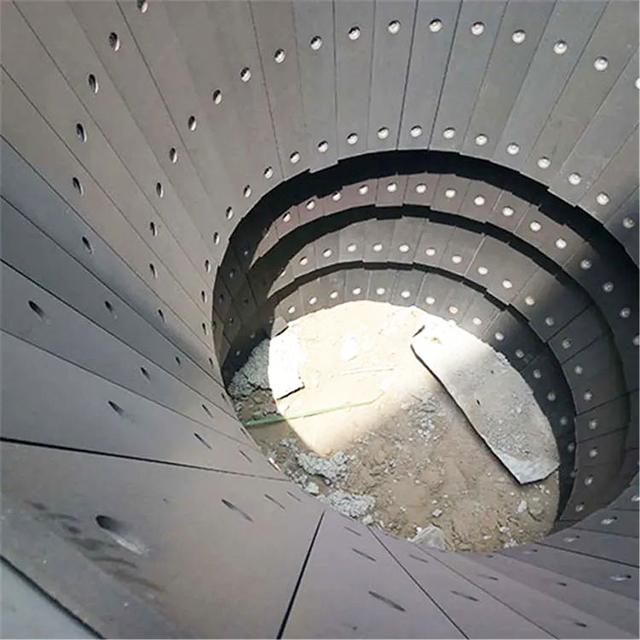

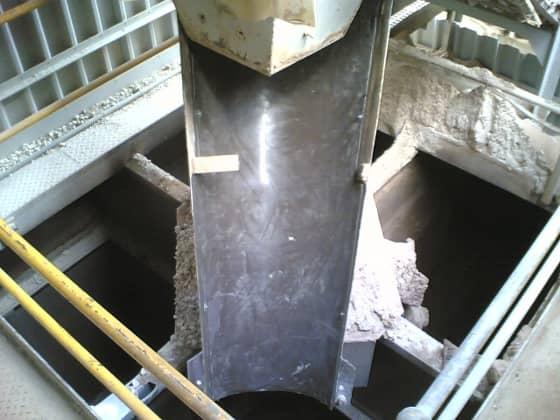

High toughness crack-resistant wear-resistant steel includes NM450, available in specifications: 2.0 – 25.0 * 1000 – 2050. It features high strength, high low-temperature toughness, high crack resistance, as well as good welding and processing properties.Plate Sheet Hot Rolled Wear Resistant Abrasion Resistant Mild Steel NM450 is widely used in the metallurgical industry, road construction industry, sand grinding machine cylinders, blades, U-type dump trucks, various cargo yards, docks, mechanical components, bearing structural parts, railway wheel structural parts, rolls, etc.
Advantages NM450:
Outstanding wear resistance
Balanced cold and hot
processing performance
Good welding performance
Uniform wear resistance
High processing heat sensitivity
NM450 Detection：
Chemical composition
Hardness test
Tensile test
Impact test
Test a ultrasuoni
Surface quality inspection
Dimensional inspection
Thickness tolerance
inspection Flatness inspection
Metallographic structure examination
Microhardness testing
Bending test
Residual stress detection
Non-destructive testing
NM450 Chemical Composition Testing：
| Elemento | Typical Value (%) |
|---|---|
| C | ≤0.22 |
| Si | ≤0.70 |
| Mn | ≤1.70 |
| P | ≤0.025 |
| S | ≤0.010 |
| Cr | 0.30–1.20 |
| Ni | 0.20–1.00 |
| Mo | 0.20–0.70 |
| B | 0.0005–0.0050 |
| Ti | ≤0.050 |
| Nb | ≤0.050 |
| V | ≤0.100 |
NM450 Hardness Test：
| Articolo | Unità | Typical Value |
|---|---|---|
| （Yield Strength） | MPa | ≥1200 |
| （Tensile Strength） | MPa | 1400～1700 |
| （Elongation A） | % | ≥10 |
| （Brinell Hardness） | HBW | 420～480 |
| （Charpy V，-20℃） | J | ≥24 |
| （Elastic Modulus） | GPa | ≈210 |
| （Poisson’s Ratio） | — | ≈0.30 |
| （Density） | g/cm³ | 7.85 |
NM450 Ultrasonic Testing and Inspection：
NM450 surface quality inspection：
NM450 size measurement：

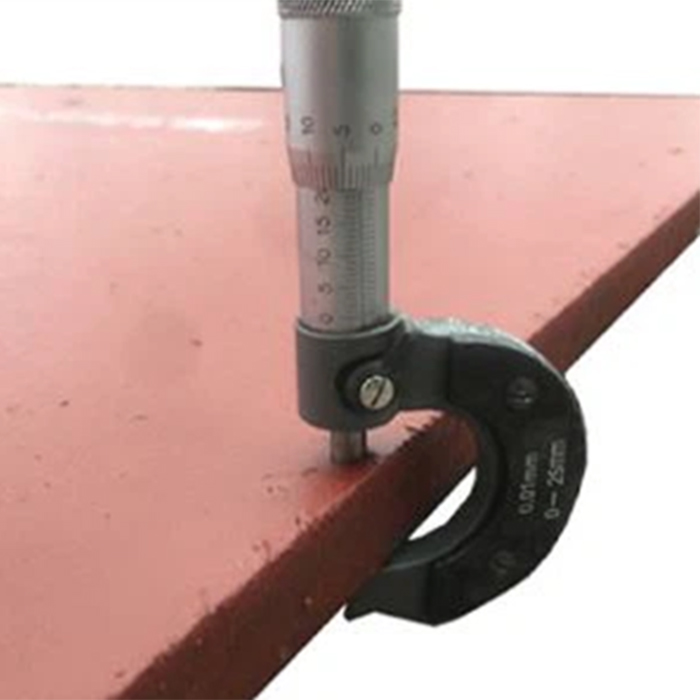

NM450 Thickness Tolerance Measurement：
| Nominal Thickness（mm） | Allowable Deviation（mm） |
|---|---|
| 5 ≤ t ＜ 8 | -0.4 / +1.1 |
| 8 ≤ t ＜ 15 | -0.5 / +1.2 |
| 15 ≤ t ＜ 25 | -0.6 / +1.4 |
| 25 ≤ t ＜ 40 | -0.8 / +1.8 |
| 40 ≤ t ＜ 80 | -1.0 / +2.2 |
| 80 ≤ t ＜ 150 | -1.2 / +2.8 |
NM450 Flatness Inspection：
NM450 Metallographic Structure Testing：
What does the NM450 metallographic analysis detect?
NM450 Microhardness Testing:
| Inspection Area | Typical Microhardness |
|---|---|
| Martensitic Structure | 450～550 HV0.5 |
| Base Metal | 430～520 HV0.5 |
| Heat Affected Zone（HAZ） | 380～550 HV0.5 |
| Welding line | 350～500 HV0.5 |
NM450 Bending Test：
Common testing standards:
GB/T 232
ISO 7438
ASTM E290
Typical test parameters：
Test method: Cold bending test
Bending angles: 90°, 120° or 180°
Bending radius: Determined according to the plate thickness and product technical requirements
Test temperature: Room temperature
Sample orientation: Can be tested along the rolling direction or perpendicular to the rolling direction respectively
NM450 residual stress testing：
XRD
Hole-Drilling
Ultrasonic method
Contour Method
Neutron diffraction method
NM450 Non-Destructive Testing：
Common testing standards：
GB/T 2970
ASTM A578/A578M
ISO 17640
ISO 3452
ISO 9934
Non-destructive testing method：
Ultrasound
magnetic particle
penetrant
radiation

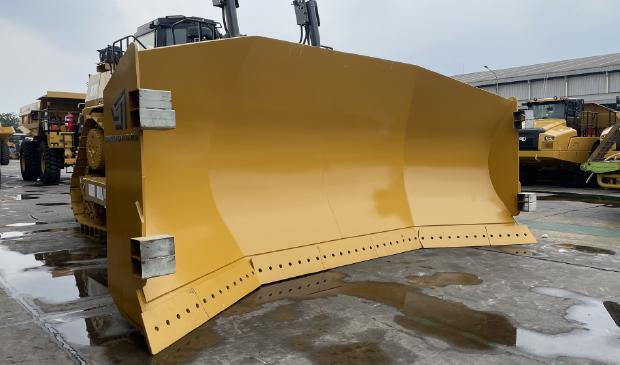

Loader bucket / Bulldozer blade / Grader cutter plate / Excavator wear parts / Road milling equipment
NM450 alloy steel plate wear resistant steel sheet is more wear-resistant than ordinary steel plates, has a longer service life, higher strength, and requires more precise processing.
Yes, in most wear-resistant conditions, NM450 steel plates and AR450 can be used interchangeably, but not in all cases can they be directly substituted for each other.

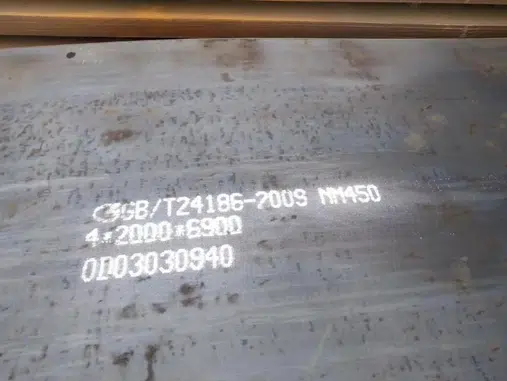

6mm-100mm Thickness NM450 Wear Resistant Steel Sheet is a brand name for wear-resistant steel plates in China. It is usually produced in accordance with standards such as GB/T 24186.
Hardox 450 is a brand of steel manufactured by a Swedish steel company.
Both have excellent wear resistance. Due to its brand, Hardox 450 usually has a higher price.
NM450 is from China,
and Raex 450 belongs to SSAB.
In most wear-resistant applications, NM450 Wear Resistance Steel Plate can be used as a performance-similar alternative material to Raex 450.
The NM450 Wear-Resistant Hot Rolled Carbon Steel Plate Sheets has a low procurement cost, fast delivery time, a wider range of specifications, excellent processing performance, and rich export experience.
Hard Plate Wear Plate NM450 Carbon Steel Sheet is suitable for both sliding wear and moderate impact wear, but not for extremely strong impact.
EN 10204 3.1 Material Certificate
Chemical Composition Report
Mechanical Performance Report
Hardness Test Report
Dimension and Appearance Inspection Record
Cost of raw materials
Steel plant brand
Plate thickness
Plate size and tolerance
Purchase quantity
Deep processing
Quality inspection
Changes in market demand
International logistics and exchange rate
Delivery cycle
It is recommended to provide the following information at the time of inquiry:
Steel plate thickness, width and length
Required tonnage Technical requirements

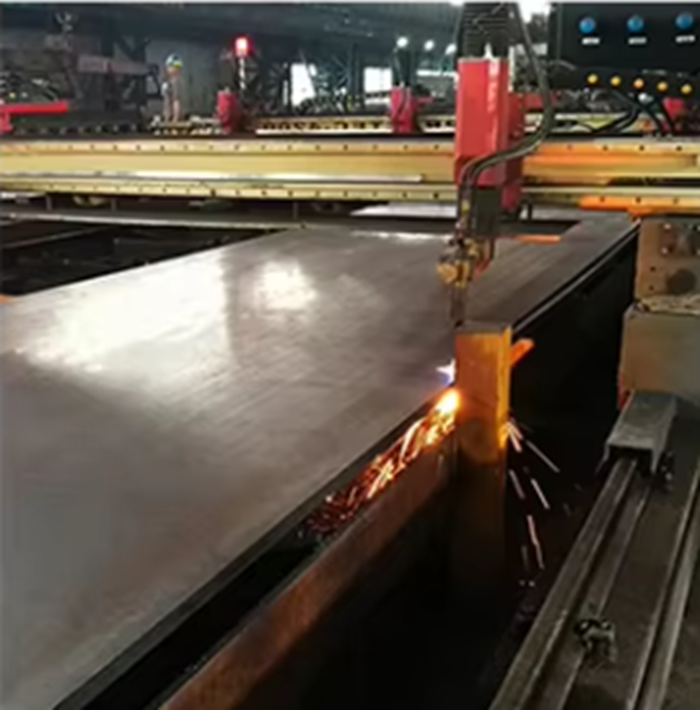

Is there a need for cutting, drilling or other processing?
Is third-party inspection required?
Trade terms (EXW, FOB, CFR or CIF)
Destination port and delivery time requirements
Competitive prices
Performance capable of meeting the needs of most wear-resistant applications
Rich specifications
Flexible processing services
Mature export experience
Extremely high requirements for wear resistance
Extreme low temperatures
High impact conditions
Specifically designated brand
High-end mines and tunnels
Special engineering equipment
Il controllo completo sui prodotti ci permette di garantire ai nostri clienti i prezzi e il servizio migliori. Contattateci per un preventivo gratuito, JBLSTEEL vi fornirà la soluzione giusta per il vostro progetto.
