Wear Abrasion Resistant Steel Sheet Nm500 Steel Plate is a type of high-strength wear-resistant steel plate, featuring high wear resistance, high compressive strength, low deformation, good toughness, and stable high-temperature performance. It is easy to process and shape, has excellent weldability, and possesses outstanding properties.
(C): 0.25 – 0.38%,
(Si): 0.10 – 0.70%,
(Mn): 1.20 – 1.80%,
(P): ≤ 0.025 (for some ≤ 0.015),
(S): ≤ 0.010 (for some ≤ 0.008),
(Cr): 0.50 – 1.80%,
(Mo): 0.20 – 0.70%,
(Ni): ≤ 1.20%,
(B): 0.0005 – 0.006%
Wear-resistant steel sheet Nm500 with a thickness of 3-12MM has a hardness of HRC58-62. Its wear resistance is over 15-20 times that of ordinary steel plates, and over 5-10 times that of low-alloy steel plates, and over 2-5 times that of high-chromium cast iron. The Nm500 wear-resistant steel plate has a double-layer metal structure, with the wear-resistant layer and the base material being metallurgically bonded, resulting in high bonding strength. It can be applied in working conditions with strong vibration and impact. The wear-resistant steel plate sheet NM500 can be used at 500°C, and can be customized to meet requirements up to 1200°C. It not only ensures the toughness e plasticity of the wear-resistant steel plate but also provides strength to resist external forces. It can be used to manufacture buckets, loaders, dump trucks, crushers, powder separators, chutes, and various wear-resistant linings.
| Classify | Name of Index | Specification and Standard Requirements Description |
|---|---|---|

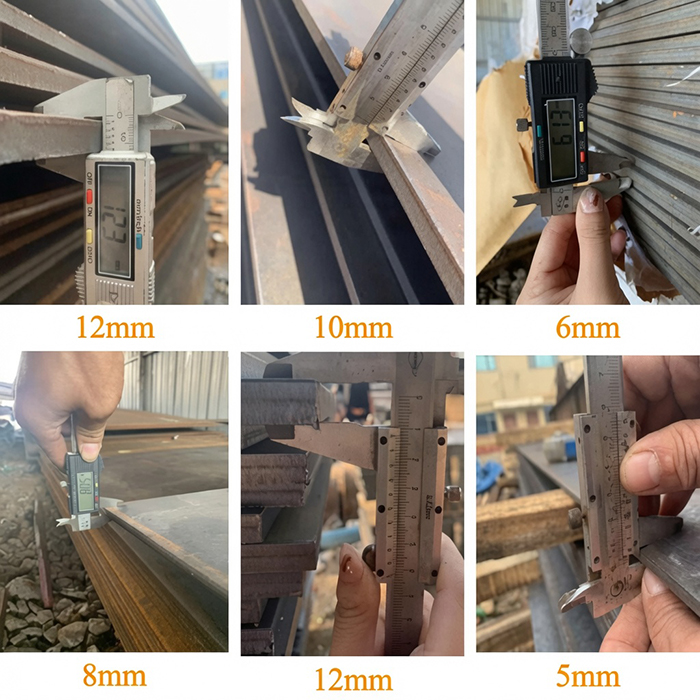

| Dimensions | Conventional Thickness | 3mm to 80mm (Some steel mills such as Baosteel and Wugang can customize it to over 100mm) |
| Common widths | 1500mm ～ 3000mm | |
| Common widths | 6000mm ～ 12000mm（can be cut to the required length） |
NM500 Steel Wear-Resistant Steel Mechanical properties
Brinell hardness (HBW) : 470-540 HBW (measured at 1.0-2.5mm below the surface, with a nominal average of 500)
Tensile strength (Rm) : ≥ 1250 MPa (typical values are usually between 1500 and 1650 MPa)
Tensile strength (Rm) : ≥ 1250 MPa (typical values are usually between 1500 and 1650 MPa)
Tensile strength (Rm) : ≥ 1250 MPa (typical values are usually between 1500 and 1650 MPa)
Impact energy (AKV) at -20℃ : Longitudinal V-shaped impact energy ≥ 27 J
NM500 Plates Abrasion Resistant Basic physical parameters
Material density：7.85g/cm³
Elasticity Modulus：2.06 × 10⁵MPa
Thermal conductivity (20℃) : approximately 35 to 42 W（m . K)
NM500 wear resistant abrasion steel plate Manufacturing and Heat Treatment
Delivery Status: Q + T (quenching + tempering) quenching and tempering process. High-temperature hot working is strictly prohibited.
Delivery Status: Q + T (quenching + tempering) quenching and tempering process. High-temperature hot working is strictly prohibited
Maximum Operating Temperature: ≤ 250 ℃ (Hardness will significantly decrease above this temperature).
NM500 Wear Resistant Steel Sheet Plate Processing Parameters
Cold-bent shaft diameter (d):d ≥ 6t (t is the thickness of the steel plate), longitudinal cold-bent, 90° bending standard
Cold-bent shaft diameter (d):d ≥ 5t transverse cold-bent, 90° bending standard
Welding preheating temperature :100-175℃ (adjust according to thickness and ambient temperature)
Interlayer temperature control :≤ 200℃ (to prevent overheating and softening in the welding zone)
Carbon equivalent (CEV): approximately 0.45 to 0.72% (increasing with the increase of plate thickness)
Hardox 500：SSAB (Swedish Steel)
JFE-EH500：JFE Steel
SUMIHARD K500：Nippon Steel
DILLIDUR 500V：Dillinger
XAR 500：ThyssenKrupp
RAEX 500：Ruukki
QUARD 500：NLMK Clabecq
BISPLATE 500：Bisalloy

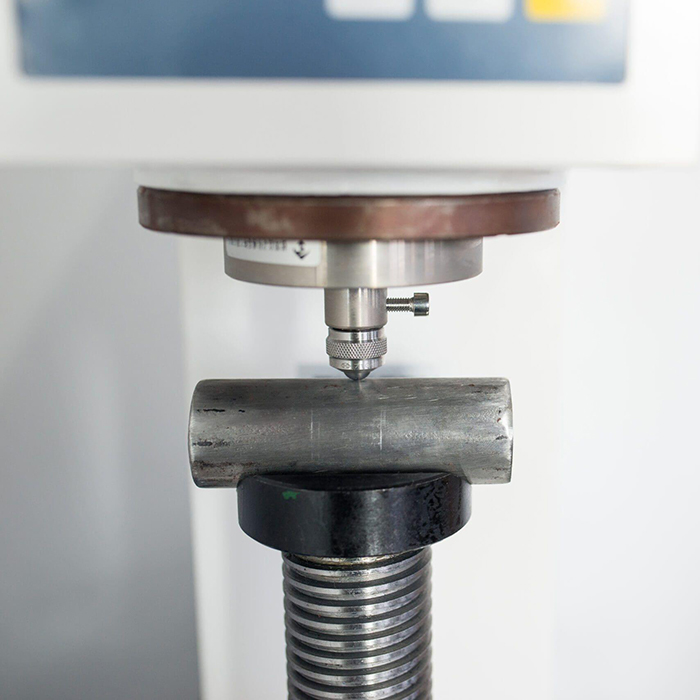

Brinell Hardness Test

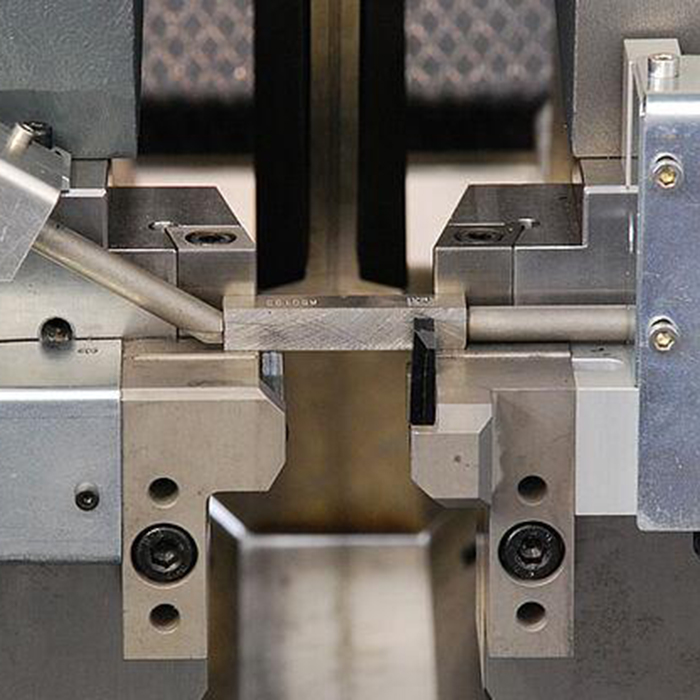

Charpy Impact Test

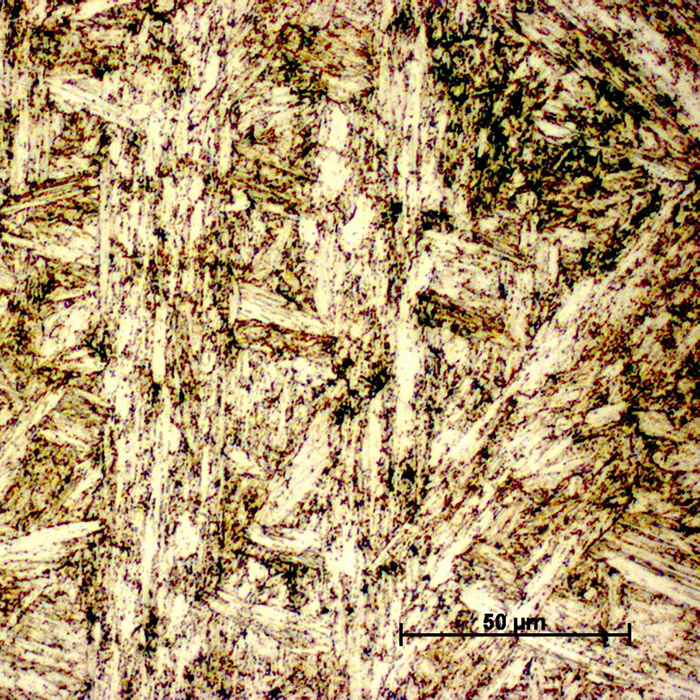

Microstructure

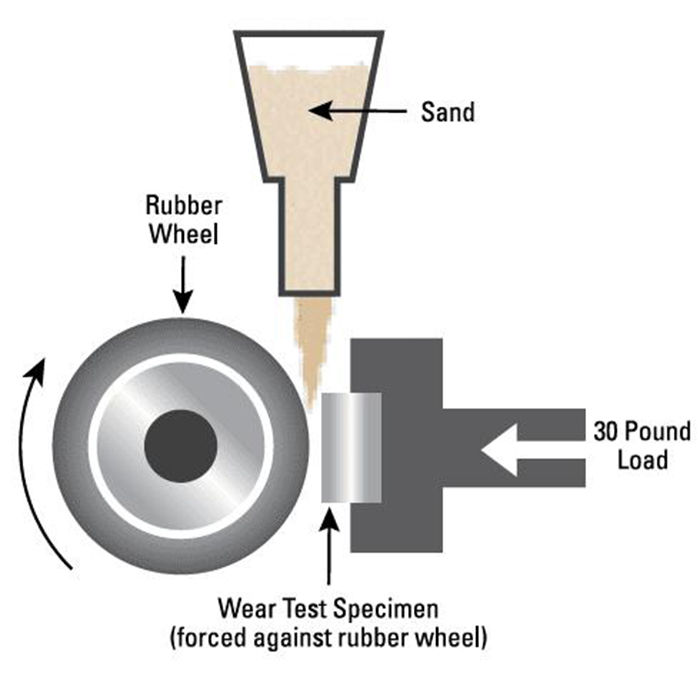

Wear Resistance Test

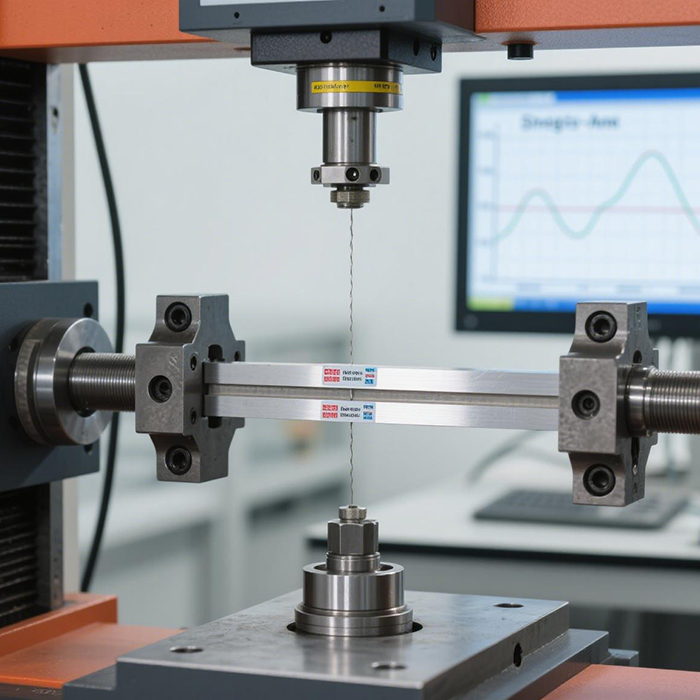

Test di trazione

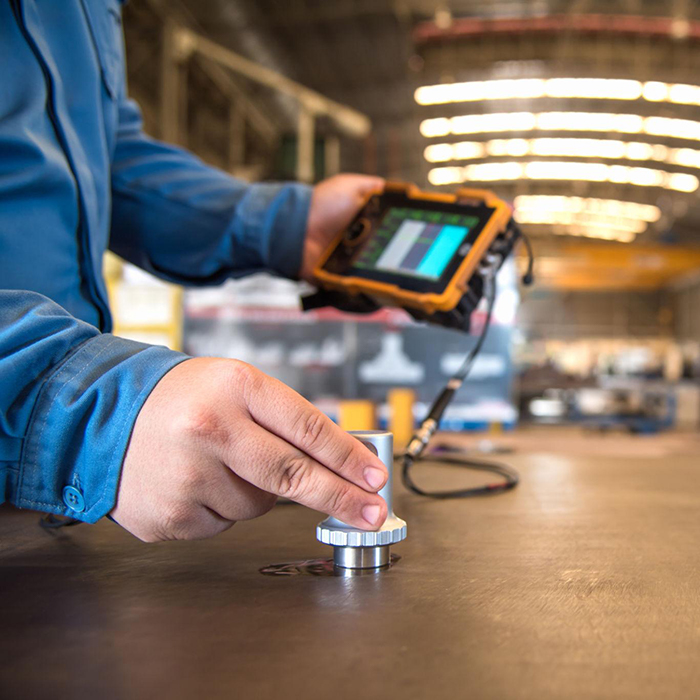

UT Inspection
| Spessore | Recommended Applications |
|---|
| 6–8 mm | Conveyor equipment liners, light wear-resistant parts |
| 10–12 mm | Chute, hopper, wear-resistant guard plate |
| 14–20 mm | Dump truck body linings, loader buckets |
| 25–40 mm | Crusher liners, heavy mining equipment |
| 45–60 mm | Large-scale mining machinery and heavy-duty wear-resistant structural components |
| ＞60 mm | Special heavy-load working conditions or customized applications |
| Processing Method | Whether is Applicable | Typical Product |
|---|---|---|
| laser cutting | ✔ | Special-shaped parts, wear-resistant plates |
| plasma cutting | ✔ | Medium and heavy plate parts |

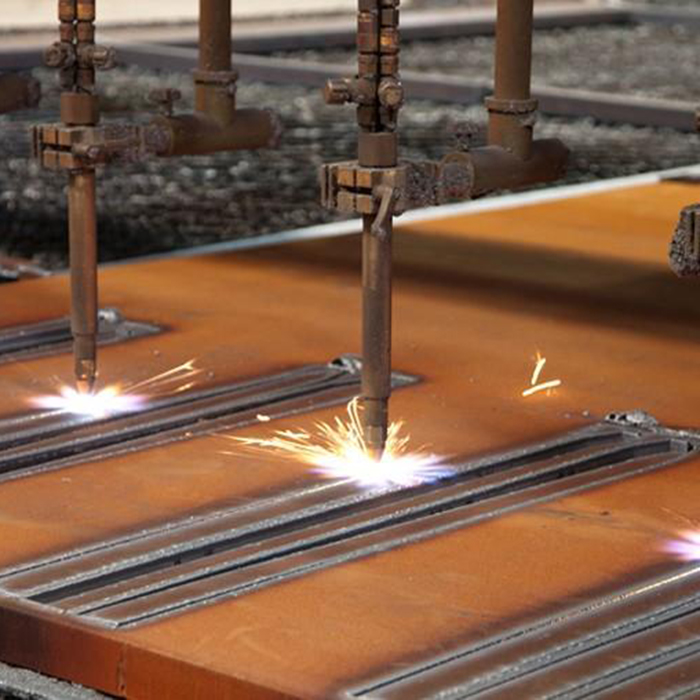

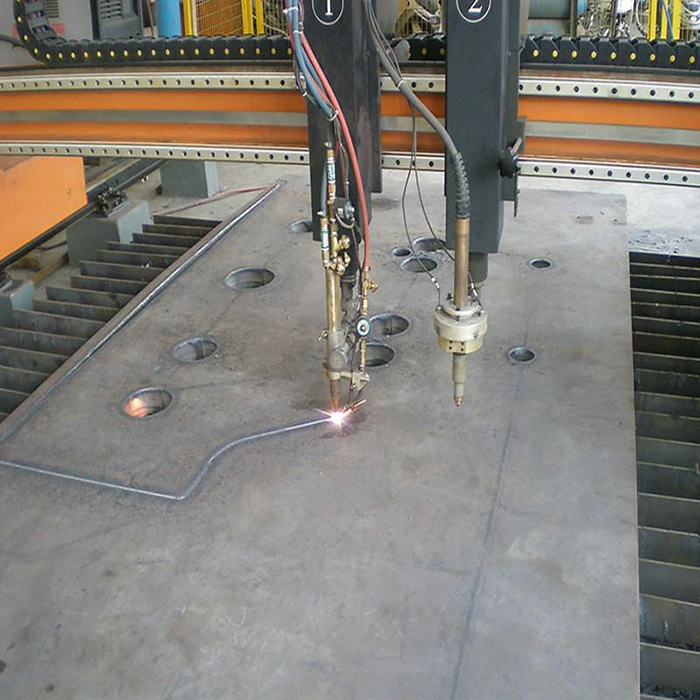

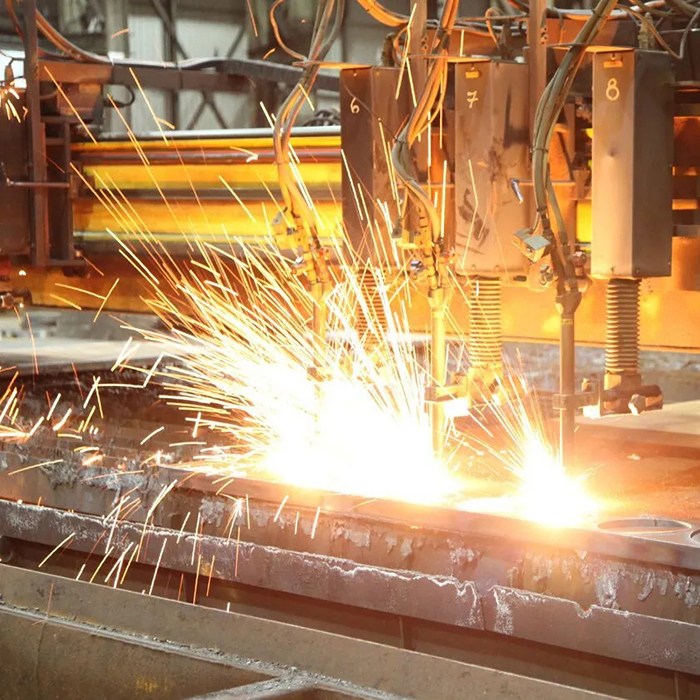

| flame cutting | ✔ | Thick plate component |
water cutting | ✔ | Precision wear-resistant parts |

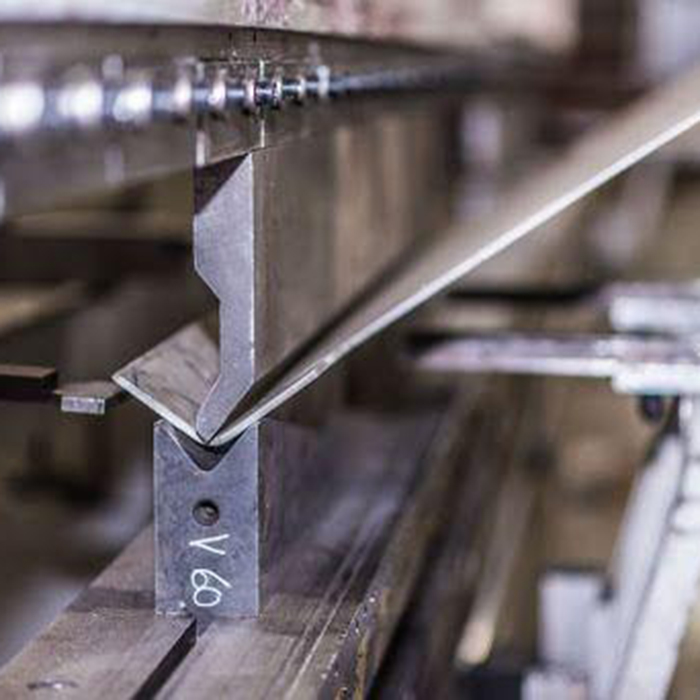

CNC Bending Machine | ✔ | Hopper, chute |

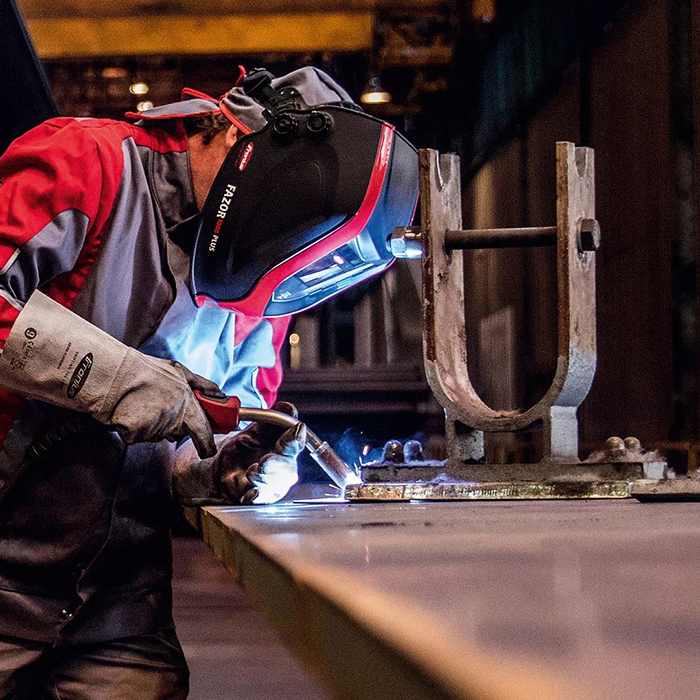

| weld | ✔ | Box body, bucket, liner plate |

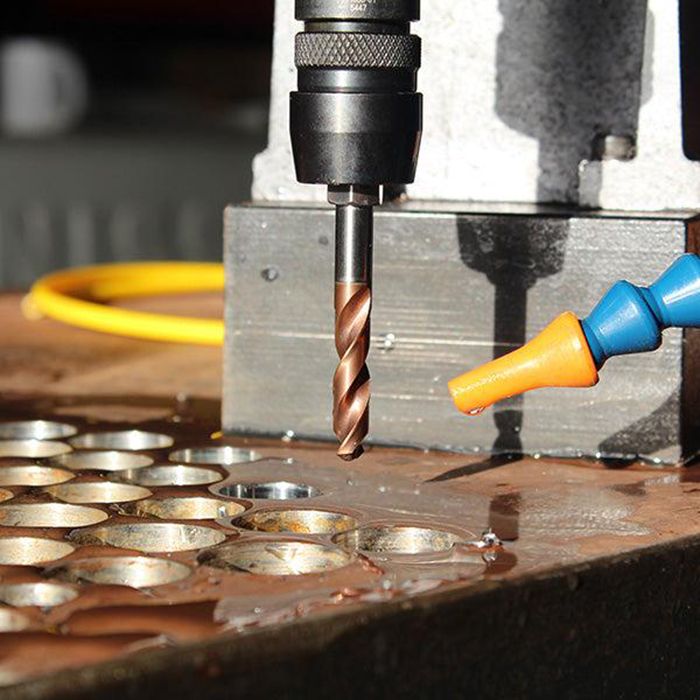

| drill | ✔ | Installation holes, flange holes |

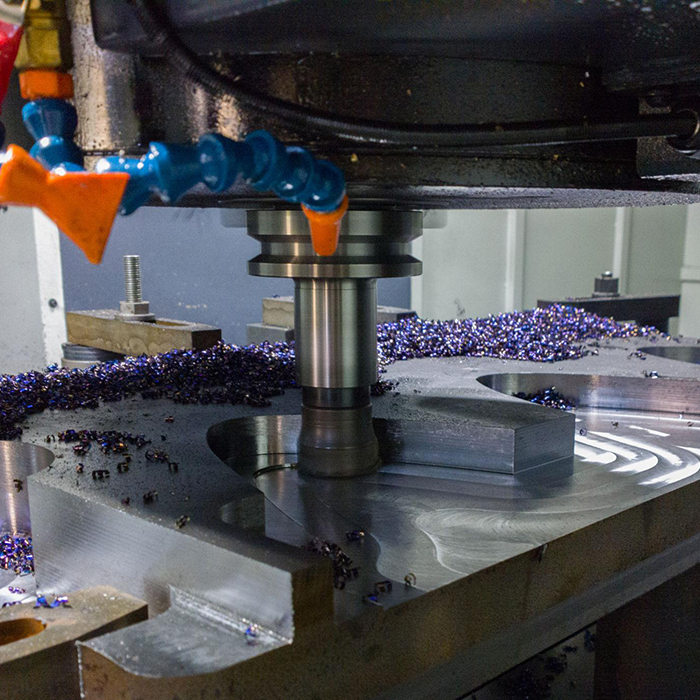

| milling | ✔ | Precision mating surface |
| Sandblasting/painting | ✔ | Anti-rust and anti-corrosion treatment |
Why does NM500 have excellent wear resistance?
NM500 is designed with low-carbon alloy and various alloy elements are added. The quenching + tempering heat treatment process directly affects the final wear resistance of NM500. The uniform and fine tempered martensite structure makes the wear-resistant steel not only hard but also possess certain toughness.
How to store NM500 steel plates?
Store them in a dry and ventilated warehouse. Do not place the steel plates directly on the ground. Stack them by category. Apply anti-rust oil and package them with anti-rust paper. Be careful to prevent mechanical damage during handling. Keep away from acids, alkalis, and areas with long-term salt spray and standing water. Regularly check.
How long is the service life of NM500?
NM500 usually has a significantly longer service life than ordinary structural steel. The specific duration may vary depending on the working conditions.
What are the differences between NM500 and ordinary steel plates?
NM500 is specifically designed for high wear conditions, while ordinary steel plates are mainly used for general structural manufacturing.
What standards does NM500 comply with?
GB/T 24186
What are the advantages of NM500 over AR500?
The advantages of NM500 are more reflected in the supply chain, cost, processing support and delivery efficiency in the Chinese and Asian markets.
How to analyze the causes of cracks or abnormal wear?
The analysis should be conducted from aspects such as materials, processing, installation, working conditions and maintenance.
Is sample testing provided?
Sì
Is one-on-one technical support provided?
Sì
Il controllo completo sui prodotti ci permette di garantire ai nostri clienti i prezzi e il servizio migliori. Contattateci per un preventivo gratuito, JBLSTEEL vi fornirà la soluzione giusta per il vostro progetto.
