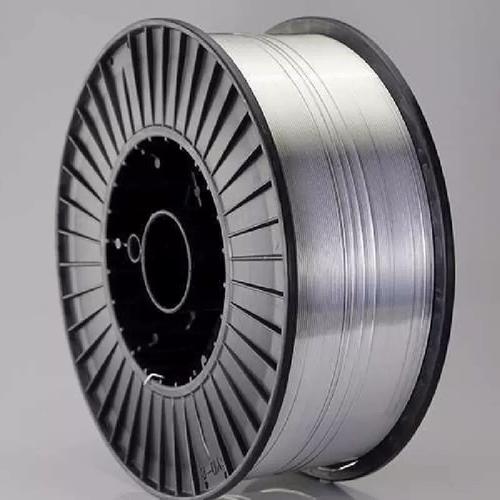

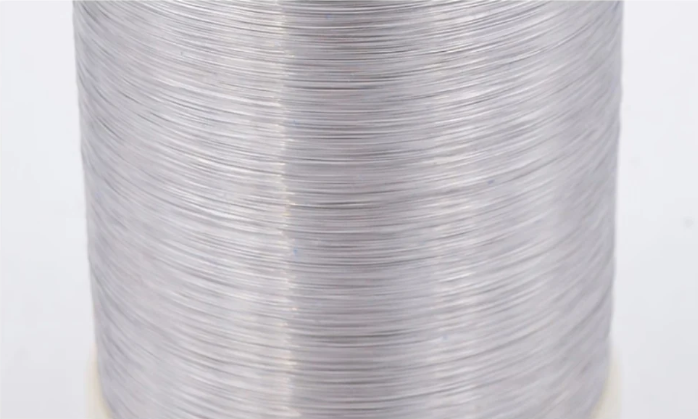

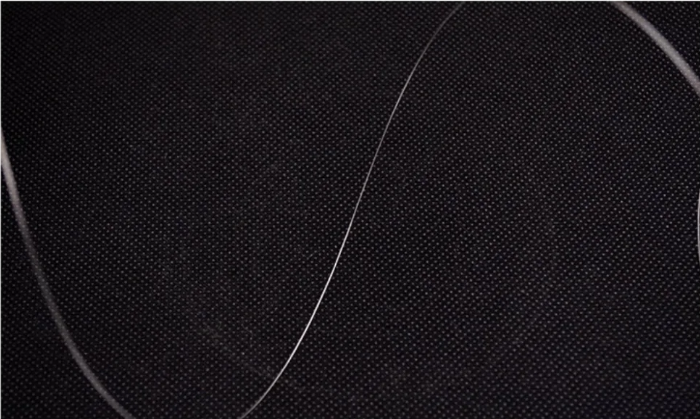

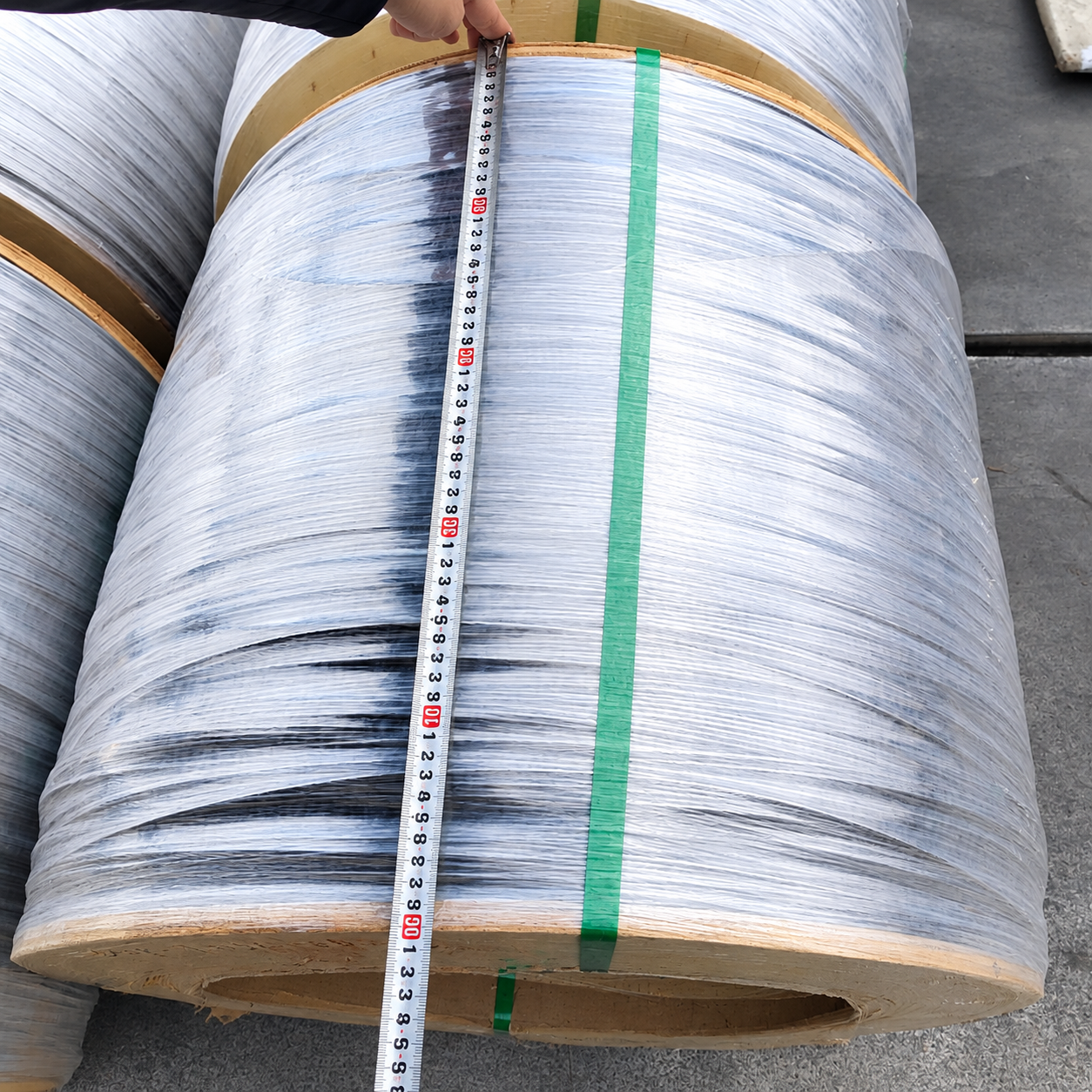

2.4 mm Stainless Steel 904l 385 Round Wire
2.4 mm Stainless Steel 904l 385 Round Wire is a low-carbon, high-nickel, molybdenum-bearing austenitic stainless and acid-resistant steel. It exhibits excellent activation-passivation transition characteristics and superior corrosion resistance; it performs well against non-oxidizing acids such as sulfuric, acetic, formic, and phosphoric acids, and offers excellent resistance to pitting, crevice corrosion, and stress corrosion cracking in neutral chloride-containing media. It is suitable for use with sulfuric acid at various concentrations below 70°C and demonstrates excellent corrosion resistance against acetic acid at any concentration and temperature—as well as mixtures of formic and acetic acids—under atmospheric pressure.
| Diameter (mm) | Weight per 1000 m (kg) | Length per kg (m) | Recommended Load (kg) | Maximum Load (kg) | Magnetism (Yes/No) |
|---|---|---|---|---|---|
| 0.1 | 0.06 | 16,051.4 | 0.9 | 4 | 예 |
| 0.2 | 0.25 | 4,012.8 | 2.2 | 8 | 예 |
| 0.3 | 0.56 | 1,783.5 | 3.0 | 12.1 | 예 |
| 0.4 | 1.00 | 1,003.2 | 5.1 | 20.4 | 예 |
| 0.5 | 1.56 | 624.1 | 8.3 | 33.2 | 예 |
| 0.6 | 2.24 | 445.9 | 12.4 | 49.7 | 예 |
| 0.8 | 3.99 | 250.8 | 21.7 | 86.7 | 예 |
| 1.0 | 6.23 | 160.5 | 24.5 | 98 | 예 |
| 1.2 | 8.97 | 111.5 | 30 | 120 | 예 |
| 1.5 | 14.02 | 71.3 | 41.75 | 167 | 예 |
| 2.0 | 24.92 | 40.1 | 56.25 | 225 | 예 |
| 2.5 | 38.94 | 25.7 | 73.5 | 294 | 예 |
| 3.0 | 56.07 | 17.8 | 159.25 | 637 | 예 |
| Parameter | Details | Parameter | Details | Parameter | Details |
|---|---|---|---|---|---|
| 브랜드 | JBL | Custom Processing | 예 | Imported | |
| 표면 마감 | Bright / Luster Finish | Specifications | Full Range (mm) | 처리 서비스 | Drawing |
| Delivery Service Included | 예 | Number of Strands | Single | 모양 | Round |
| 애플리케이션 | Industrial Manufacturing | 직경 | 0.8–12 mm | Quality Grade | Premium |
| 인장 강도 | 800 MPa | Weighing Method | Weighed by Actual Weight | Cross-Section Shape | Flat |
| 조건 | Soft / Hard | 속성 | Corrosion Resistant | Product Quality | Genuine Product (Quality Claims Accepted) |
| Sales Type | In Stock / Custom | Available Market | worldwide | 재료 | 904L |
[Product Range]:
Hydrogen-annealed stainless steel wire, bright stainless steel wire, soft bright stainless steel wire, medium-hard stainless steel wire, stainless steel spring wire, extra-hard stainless steel wire, flat stainless steel wire, half-round stainless steel wire, and oval stainless steel wire.
[Product Specifications]:
Hydrogen-annealed soft wire: 0.02 – 5.0 mm. Bright medium-hard wire: 0.05 – 6.0 mm. Hard-temper spring wire: 0.15 – 3.0 mm. Other specifications available upon request.
[Main Chemical Composition]:
(C): ≤ 0.02%
(Cr): 19.0%–23.0%
(Ni): 23.0%–28.0%
(Mo): 4.0%–5.0%
(Cu): 1.0%–2.0%
(Mn): ≤ 2.0%
(Si): ≤ 1.0%
(P): ≤ 0.045%
(S): ≤ 0.035%
[Performance Parameters]:
Density: 8.24 g/cm³
Tensile strength (σb): ≥520 MPa
Yield strength (σ0.2): ≥216 MPa
Elongation (δ): ≥35%
Hardness range: 150–200 HB
[Physical Properties]:
Density: Approx. 8.0–8.24 g/cm³
Melting Point: 1300–1390°C
Magnetism: Non-magnetic (austenitic structure)
Hardness: 150–200 HB
[Heat Treatment Reference]:
Solution treatment: 1100–1150°C
1. Chemical Industry (Primary Sector)
패스너

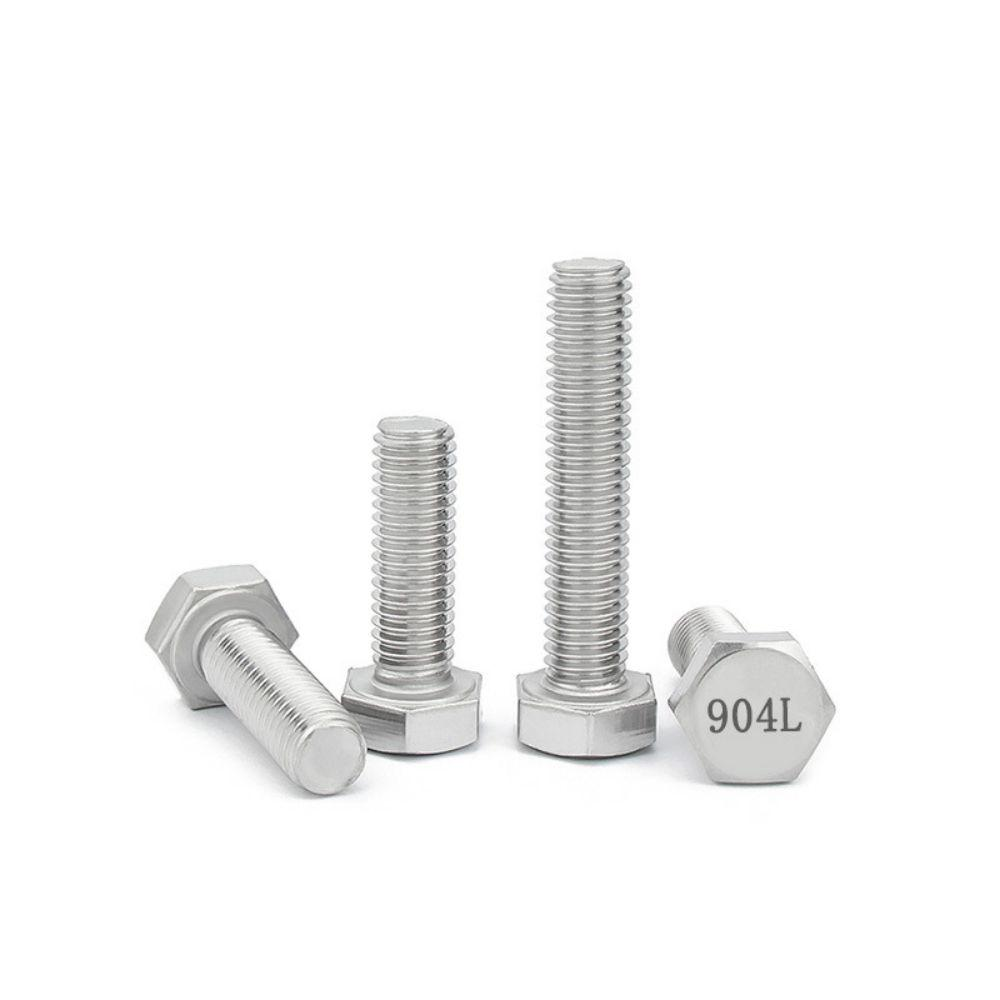

Acid-resistant bolts, nuts, and spring wire; fasteners for sulfuric, phosphoric, and acetic acid processing equipment

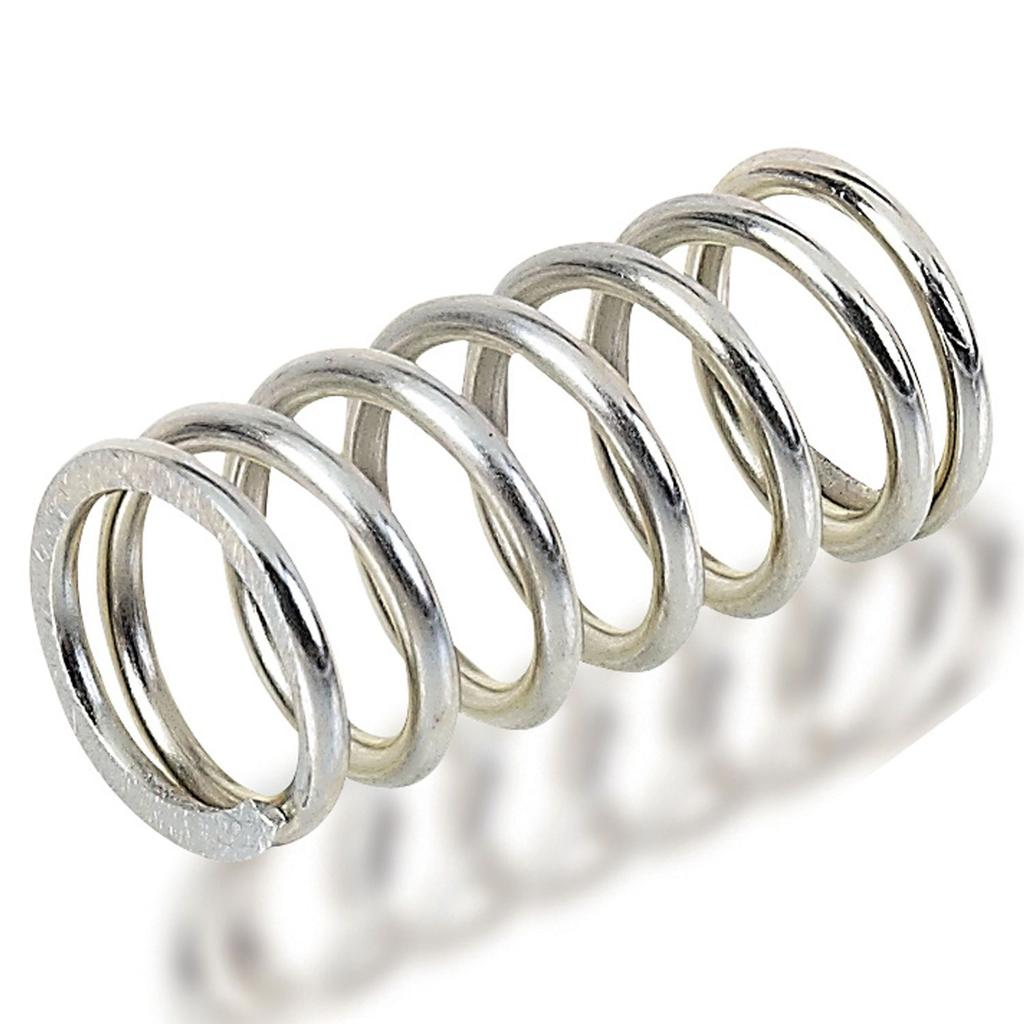

Springs
Corrosion-resistant springs for corrosive environments (dilute acids, chloride-containing media)

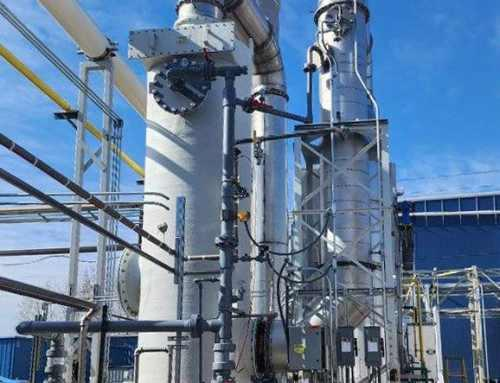

Pickling equipment
reactor internals, flue gas scrubber internals, electrostatic precipitator electrode wires
2 . Environmental Protection / Desulfurization and Denitrification
– Power plant FGD flue gas desulfurization towers: spray assemblies, mist eliminator mesh, and securing tie wires (wet flue gas + chloride ions + acidic media)
– Metal mesh and binding wire for waste gas scrubbing and waste incineration flue gas applications (corrosive environments)
3. Seawater, Desalination, and Marine Engineering

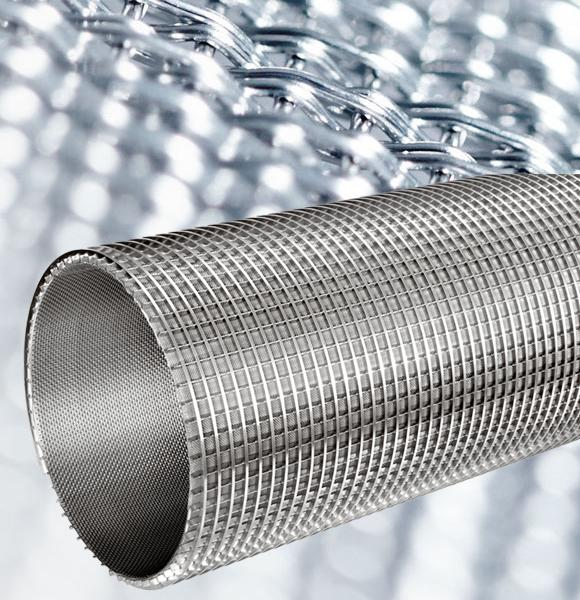

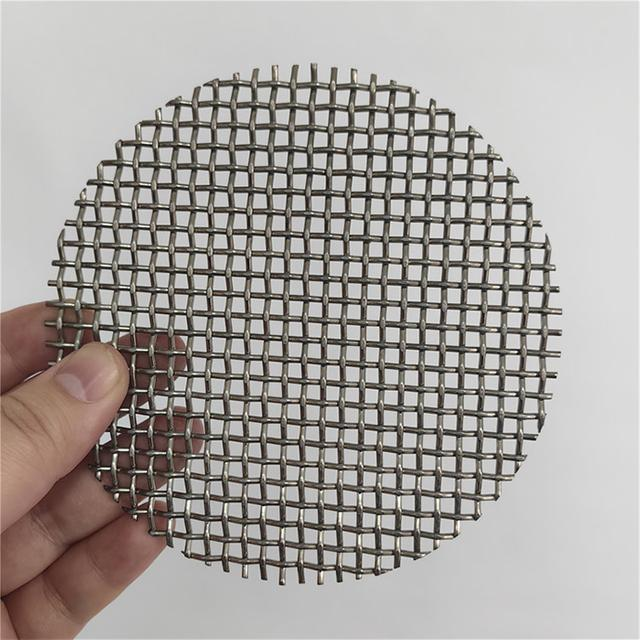

– Filter screens for seawater desalination units, woven mesh for seawater cooling systems, fasteners for marine salt-spray environments, and wire for seawater filters
– Lashing wire for offshore equipment and anti-corrosion woven mesh
4. Pulp and Paper Industry
– Filtration screens and conveyor screens for the pulp bleaching section (involving chlorine-based bleaching media, where standard 316L is prone to pitting corrosion)
5. Pharmaceuticals and Food
– Pharmaceutical filtration mesh, springs for cleanroom equipment, and filter screens for food-grade organic acid processing equipment (high purity, low extractables)

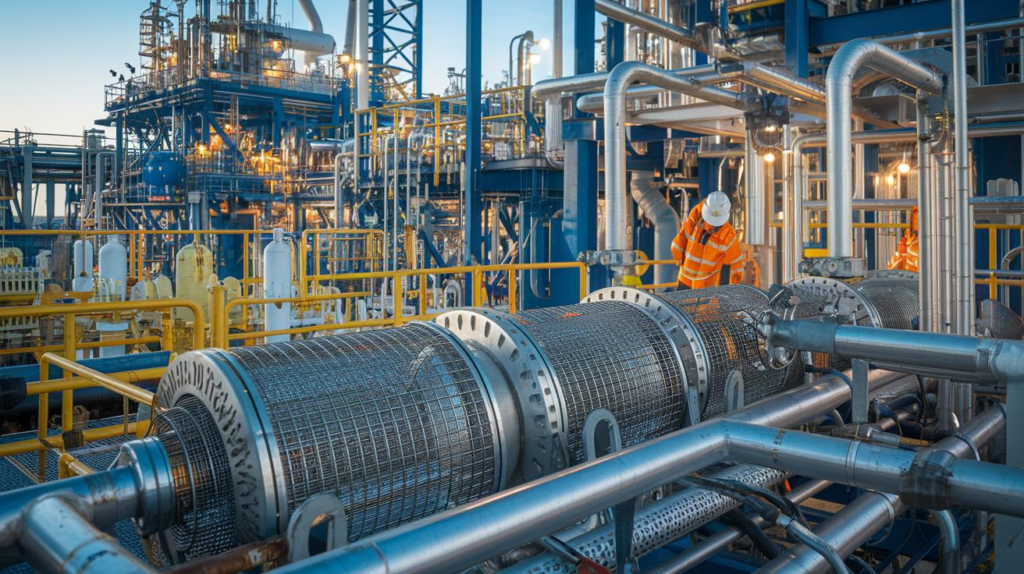

6. Petroleum and Petrochemicals
– Filter media for chloride-containing and acidic media in oilfields; petrochemical reactor internals; fine steel wire for instrumentation in corrosive operating environments.

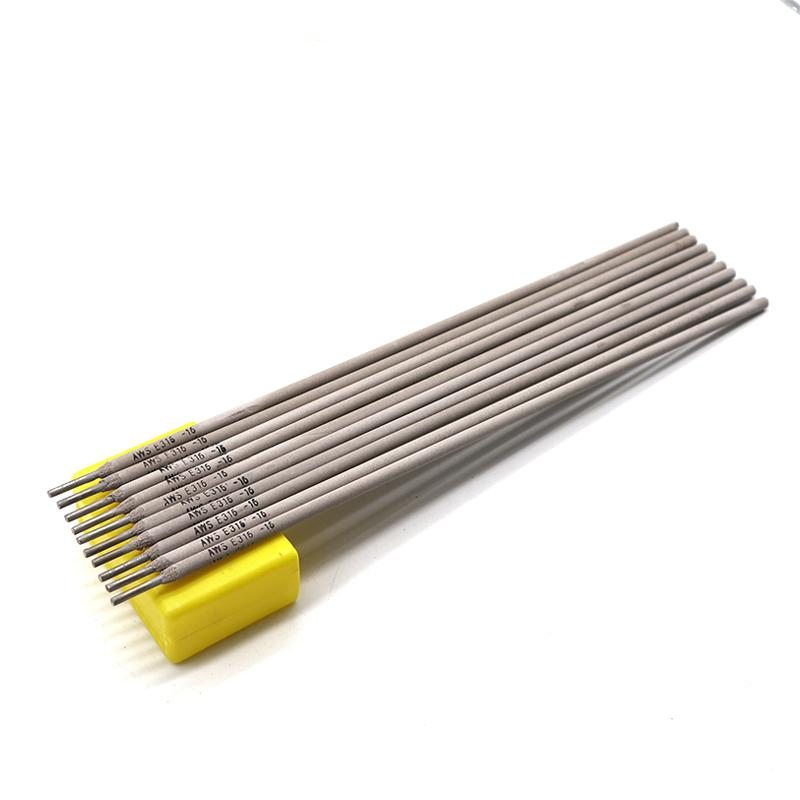

7. Specialized Welding Consumables (904L Welding Wire)
ER385 welding wire, used for welding 904L base metal; serves as filler wire for welding equipment in chemical processing, desulfurization, and seawater applications.
2.4 mm Stainless Steel 904l 385 Round Wire
제품에 대한 완벽한 제어를 통해 고객이 최고 품질의 가격과 서비스를 받을 수 있도록 보장합니다. 무료 견적을 위해 저희에게 연락하시면 JBLSTEEL이 귀하의 프로젝트에 적합한 솔루션을 제공 할 것입니다.
