Duplex UNS S32205 2205 1.4462 Stainless Steel
High strength,
High hardness,
High toughness,
Market prices are unstable; please call for specific pricing.
Duplex UNS S32205 2205 1.4462 Stainless Steel
2205 Stainless Steel (Grade 00Cr22Ni5Mo3N)
Duplex stainless steel 2205 is a dual-phase alloy composed of 22% chromium, 2.5% molybdenum, and 4.5% nickel-nitrogen. It features high strength,
good impact toughness, and excellent resistance to both general and localized stress corrosion. The yield strength of 2205 duplex stainless steel is double that of
austenitic stainless steel; this characteristic allows designers to reduce product weight and gives the alloy a cost advantage over grades 316 and 317L.
This alloy is particularly suitable for use within the temperature range of -50°F to 600°F. Applications outside this range may
also be considered, though there are limitations, particularly regarding welded structures.
| Product surface description | level | quality grade | quality goods |
|---|---|---|---|
Material | 2205 | specification | 2.0*1219*C,2.5*1219*C, 3.0*1219*C,4.0*1500*C, 5.0*1500*C,6.0*1500*C, 7.0*1219*C,8.0*1500*C, 9.0*1219*C,10.0*1500*C, 11.0*1500*C,12.0*1500*C, 13.0*1500*C,14.0*1500*C, 15.0*1500*C,20.0*1500*C |
| surface | NO.1 | place of origin | TISCO |
| Whether to export | yes | Origin/Manufacturer | TISCO |
| Art.No. | JBL-01 | application and usage | It is widely used in highly corrosive environments such as marine environments, chemical industries, and the oil and gas sectors. |
| Can it be customized? | yes | Whether it is processable | yes |

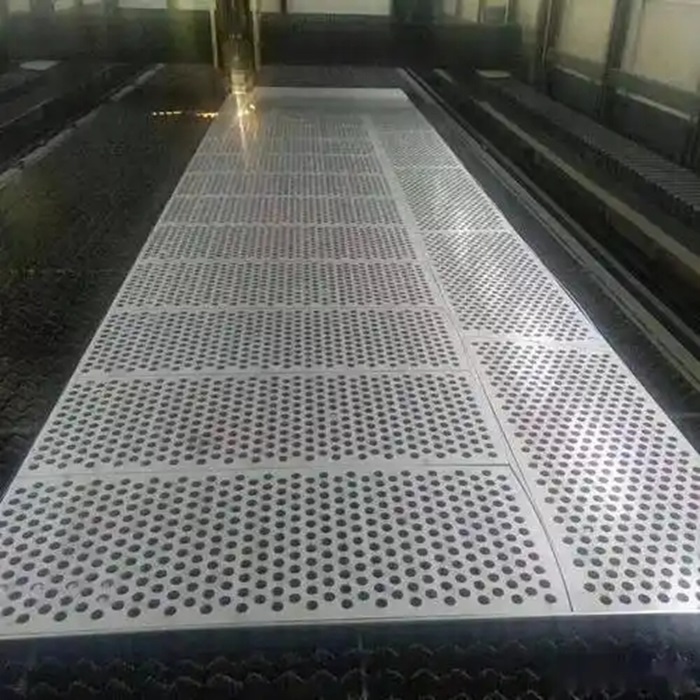

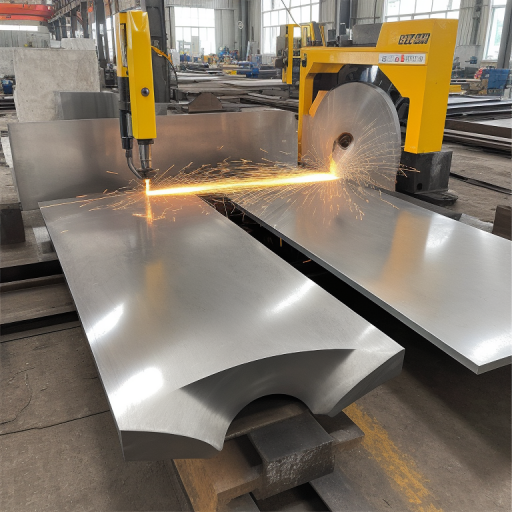

processing technology | Film application, flattening, laser cutting, surface treatment, slitting | The city where the warehouse is located | Anyang |
| warehouse | Anyang Steel City | warehouse address | Anyang, Henan Province |
Carphone Warehouse | 186-3728-5401 | Processing Services | Rough machining (uncoiling, slitting, etc.) |
| distribution service | Delivery to the factory is available. | Type of goods sales | spot goods |
| brand | JBLstainless | ||
2205 Stainless Steel Plate (Cut-to-Size/Retail): +86-18637285401
Recent Prices for 2205 Stainless Steel Plate:
1mm thick: 25.6 Yuan/kg
2mm thick: 25.6 Yuan/kg
3mm thick: 25.3 Yuan/kg
4mm thick: 25.3 Yuan/kg
5mm thick: 25.2 Yuan/kg
6mm thick: 25.2 Yuan/kg
8mm thick: 25.0 Yuan/kg
10mm thick: 24.8 Yuan/kg
12mm thick: 24.8 Yuan/kg
14mm thick: 24.6 Yuan/kg
Market prices fluctuate; please call for specific pricing.—-JBL
Duplex 2205 Stainless Steel Physical & Mechanical Properties:
Chemical composition —-2205 duplex stainless steel
| (Fe) | 63.5%~72.5% |
| (Cr) | 21%~23% |
| (Ni) | 4.5%~6.5% |
| (Mo) | 2.5%~3.5% |
| (Mn) | 1.0%~2.0% |
| (Si) | 0.8%~1.0% |
| (V) | 0.1%~0.3% |
| (N) | 0.14%~0.20% |
Precautions for Use–Alloy 2205
Welding: During welding, heat input must be controlled to prevent the precipitation of harmful phases in the heat-affected zone (HAZ), which could compromise material properties.
Heat Treatment: Appropriate post-weld heat treatment (such as solution treatment) is required to restore the material’s excellent corrosion resistance and mechanical properties.
