High-Temperature Material 10mm Thick AISI 310Si2 Stainless Steel Sheet
Cold-rolled sheet:
Thickness: 0.3–6.0 mm (2B finish)
Width: 1000–1800 mm
Hot-rolled sheet:
Thickness: 3.0–100 mm (No. 1 finish)
Width: 1500–2000 mm
High-Temperature Material 10mm Thick AISI 310Si2 Stainless Steel Sheet is a material with excellent properties; it offers outstanding high-temperature resistance, maintaining good strength and stability in high-temperature environments, while also exhibiting excellent corrosion resistance capable of withstanding attack by various corrosive media.
If you want to learn more about the related products or services, you can contact JBL Stainless at: +86-18637285401.
310Si2 Stainless Steel Plate—Chemical Elements
Carbon (C): ≤0.20%
Silicon (Si): 1.50%–2.50%
Manganese (Mn): ≤1.50%
Phosphorus (P): 0.040%
Sulfur (S): 0.030%
Chromium (Cr): 24.00%–27.00%
Nickel (Ni): 18.00%–21.00%
310si2 Stainless Steel Sheets–Application Areas
Chemical Industry: It can be used to manufacture various chemical equipment and piping, ensuring stable, long-term operation in corrosive environments.

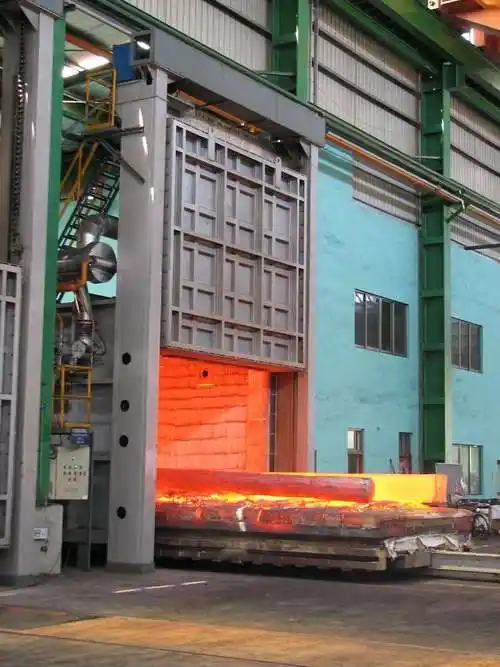

Metallurgical Industry: High-Temperature Material 10mm Thick AISI 310Si2 Stainless Steel Sheet is suitable for manufacturing components for high-temperature furnaces, capable of withstanding extreme heat.
Additionally: High-Temperature Material 10mm Thick AISI 310Si2 Stainless Steel Sheet is also utilized in sectors such as power generation and aerospace.
310Si2 stainless steel — Grade designations across different countries:
Chinese Standard (GB/T): Numerical designation S38340; new designation 16Cr25Ni20Si2; old designation 1Cr25Ni20Si2.
US Standard (ASTM): ASTM.
Japanese Standard (JIS): JIS 314.
German Standard (DIN): 1.4841.
European Standard (EN): X8CrNiSi25-21.
310Ssi2 — Mechanical Properties:
Tensile strength: ≥520 MPa,
Yield strength: ≥205 MPa,
Elongation: ≥40%,
Reduction of area: ≥50%,
Hardness: ≤187 HB
F A Q：
Q1: What is the typical high-temperature operating range for 310Si2 stainless steel plate?
A: It is suitable for high-temperature environments ranging from 900°C to 1200°C.
Q2: How long does it take to fulfill an order for JBL’s 310Si2 stainless steel plate?
A: 15–30 days.
Q3: How can I verify that the purchased 310Si2 stainless steel plate meets quality standards?
A: First, request the original manufacturer’s quality certificate for that specific batch from the supplier.

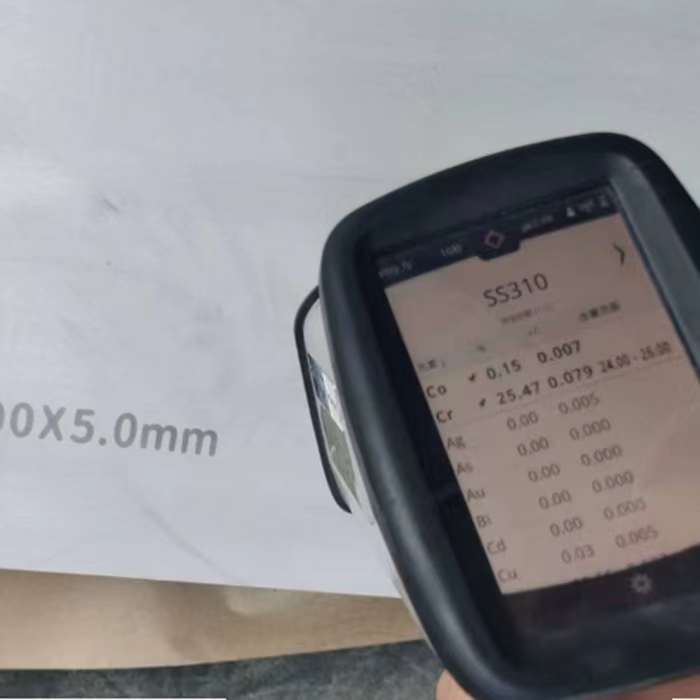

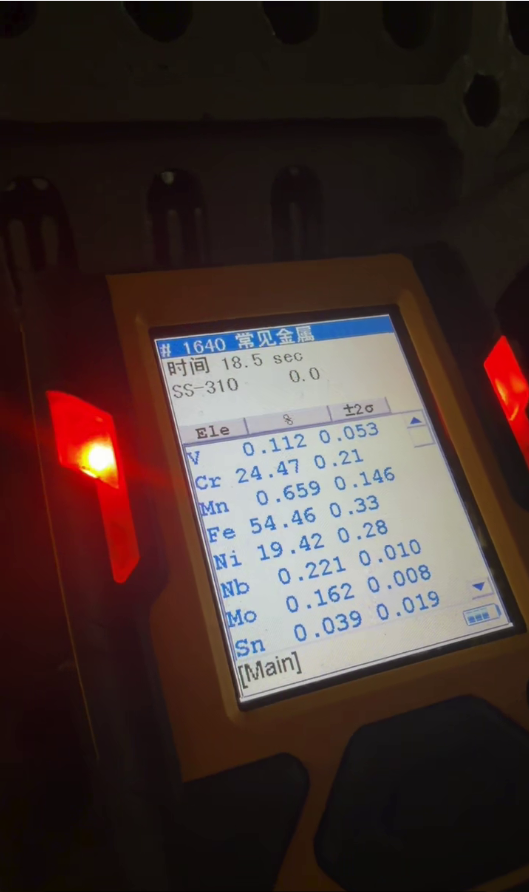

You can also use a spectrometer to verify the nickel, chromium, and silicon content on-site.
Q4: Can 310Si2 stainless steel plate be cut to custom sizes?

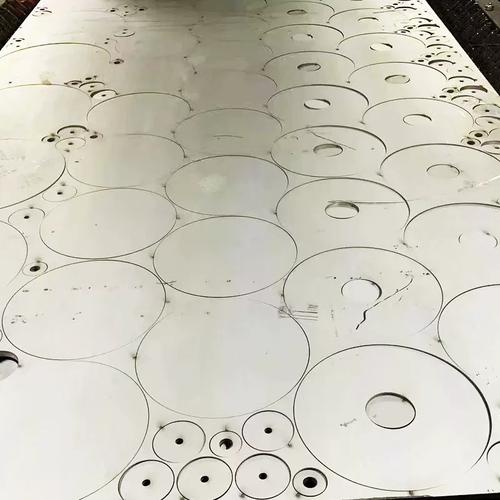

A: Yes, JBL supports cutting to specific dimensions based on customer requirements.
Q5: Is the original manufacturer’s quality certificate unavailable for small-batch purchases of 310Si2 stainless steel plate?
A: JBL provides the corresponding original manufacturer’s quality certificate for all orders, regardless of size.
Q6: What are the common pitfalls when purchasing 310Si2 stainless steel plate?
A: Some vendors may attract customers with low prices but substitute genuine products with substandard plates, leading to issues such as high-temperature deformation or cracking during use.
Q7: Can 310Si2 stainless steel plate be used in chemical pickling environments?
A: High-quality 310Si2 stainless steel plate maintains stable corrosion resistance in moderately concentrated, high-temperature acidic conditions. For highly corrosive environments, you can ask JBL to recommend a more suitable grade based on your specific operating conditions.
Q8 :What are the differences between 310Si2 and 310 stainless steel plates?
A:
| Item | 310Si2 (16Cr25Ni20Si2) | 310 Stainless steel |
|---|---|---|
| carbon content | ≤0.12% | ≤0.25% |
| silicon content | 1.5-2.5% | ≤1.0% |
| Long-term antioxidant temperature | 1100-1150℃ | 1000-1050℃ |
| Resistance to sulfidation/carburization | excellent | ordinary |
| application scenarios | High-temperature oxidation/carburizing conditions for the bottom plate of heat treatment furnaces, furnace rollers, radiant tubes, etc | Fixed high-temperature equipment components, such as furnace inner supports |
| price | It is higher than the 310S conventional heat-resistant plate | Lower price |
For inquiries regarding products or services, please contact JBL Stainless Steel at +86-18637285401.
High-Temperature Material 10mm Thick AISI 310Si2 Stainless Steel Sheet
Complete control over products allows us to ensure our customers receive the best quality prices and service. Contact us for a free quote,JBLSTEEL will provide the right solution for your project.
