XAR 450 Premium Wear-Resistant 450 Structural Steel
Hardness (at room temperature): 420 – 480 HBW.
Thickness: 4 – 10 mm.
Dimensions: 2000*6000 or 2500*8000.
(Inventory inquiries can be made by contacting the sales staff.)—-JBLstainless

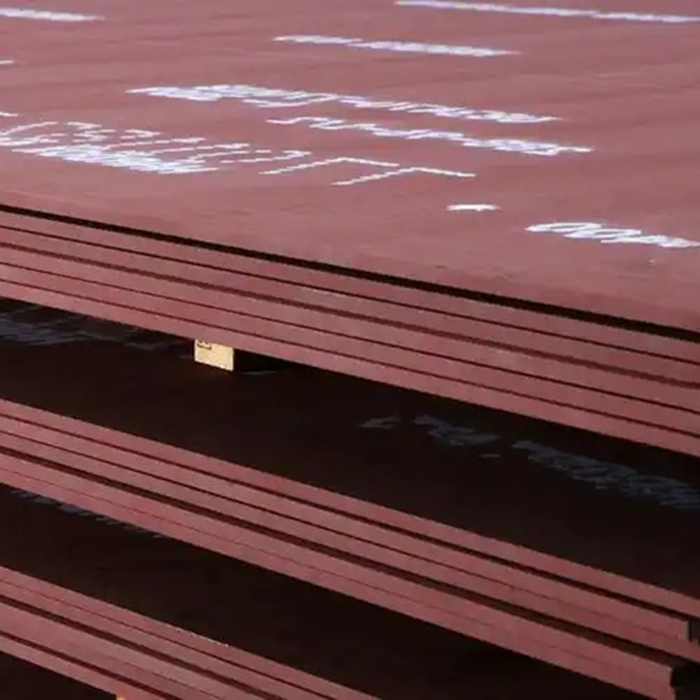

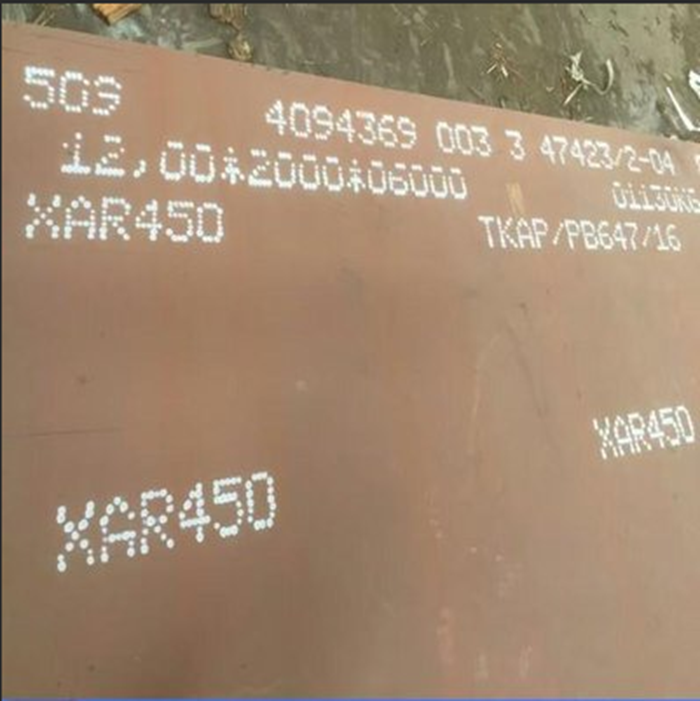

XAR450 sheet material
can be respectively referred to as XAR450 alloy steel plate, XAR450 steel plate, XAR450 coil sheet, XAR450 open flat plate, XAR450 strip steel, XAR450 cold-rolled sheet, XAR450 hot-rolled sheet, XAR450 thin plate, XAR450 medium plate, XAR450 thick plate, XAR450 extra-thick plate, etc.
XAR450 bar
products can be respectively referred to as XAR450 alloy steel round bar, XAR450 round bar, XAR450 coil bar, XAR450 wire rod, XAR450 wire, XAR450 forged round bar, XAR450 round bar, XAR450 black bar, XAR450 rough round bar, XAR450 smooth round bar, XAR450 machined smooth round bar, XAR450 hot-rolled round bar, XAR450 rolled round bar, XAR450 cold-drawn round bar, etc.

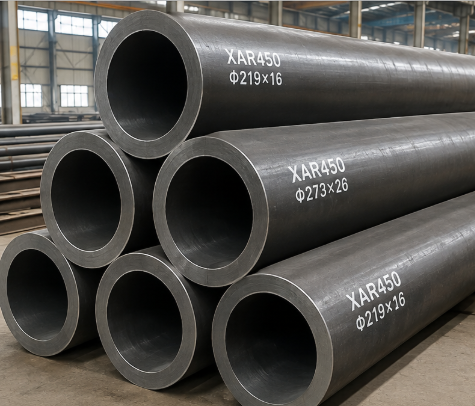

XAR450 pipe
can be respectively referred to as XAR450 alloy steel pipe, XAR450 pipe, XAR450 stainless steel seamless pipe, XAR450 seamless pipe, XAR450 stainless steel welded pipe, XAR450 welded pipe, XAR450 stainless steel precision pipe, XAR450 precision pipe, XAR450 capillary tube, etc.
| Henan JBL Steel offers both domestic and international imported wear-resistant plates. |
|---|
Chemical Component：
C ：≦0.22
Si ： ≦0.8
Mn ： ≦1.50
P ：≦0.025
S ： ≦0.012
Cu ： ≦0.30
Cr ： ≦1.30
Mo ：≦0.50
B ： ≦0.005
6*2000*6000
8*2000*6000
10*2000*6000
12*2000*6000
14*2000*6000
16*2000*6000
18*2000*6000
20*2000*6000
22*2000*6000
25*2000*6000
30*2000*6000
32*2000*6000
35*2000*6000
40*2000*6000
45*2000*6000
50*2000*6000
55*2000*6000
60*2000*6000
Mechanical characteristics of XAR450: (Typical parameters for 15mm thick steel plate) *) 1 MPa = 1 N/mm
Carbon equivalent CET (%): CET = C + (Mn + Mo) / 10 + (Cr + Cu) / 20 + Ni / 400.35
Carbon equivalent CE (%): CE = C + Mn / 6 + (Cr + Mo + V) / 5 + (Ni + Cu) / 15 0.5
Yield strength MPa: 1200
Tensile strength MPa: 1400
Elongation A5%: 10
Impact strength Shaker V30J: -40°C

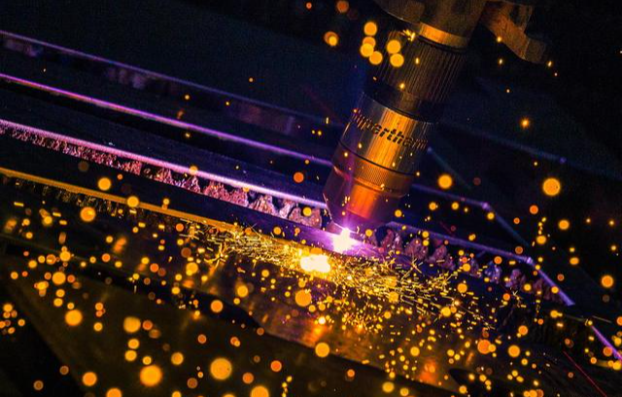

Flame cutting
(rapidly cutting large metal plates by moving the cutter instead of moving the metal block)
Milling both sides
(First mill one side, then turn around and mill the other side. This can remove the black skin and achieve a higher level of flatness.)
Sawing cutting
(Requires moving the metal block onto the sawing machine for cutting, with a 5mm allowance reserved.)
Milling the four sides of the surface
(Fix the mold steel in place, and mill the four sides of the surface one by one.)
Grinding both sides
(Grinding the steel surface with a large grinding machine.)
CNC machining center
(CNC machines have enhanced the efficiency and precision of the processing.)
Wire cutting
(Through the monitoring of NC, the processing precision and surface quality are good.)
CAD drawing
(We carry out the processing according to the drawings.)
Complete control over products allows us to ensure our customers receive the best quality prices and service. Contact us for a free quote,JBLSTEEL will provide the right solution for your project.
