254SMO Ultra-thin, Corrosion-resistant, High-temperature Precision Stainless Steel Strip
0.05mm
0.1mm
0.15mm
0.2mm
0.3mm
0.4mm
0.5mm
0.8mm
The above specifications refer to coil thickness; please contact customer service for other requirements—JBLstainless
254SMO Ultra-thin, Corrosion-resistant, High-temperature Precision Stainless Steel Strip–A narrow and long steel plate produced to meet the needs of industrial production of various types of metal or mechanical products in different industrial sectors. Stainless steel strips are simply extensions of stainless steel plates.
| Brand | JBL | Is it imported? | Yes | Is it leftover material? | NO |
| Product surface description | cold rolling | specification | 0.6mm | Weighing method | weigh |
Processing Services | Slitting and surface processing | Does it include delivery service | YES | Scope of application | For use on ships and at sea |
| Is there a warranty certificate? | YES | Quality grade | stair | Surface | 2B、HL |
| Distribution service | Home Delivery | Can it be customized? | YES | Whether it is processable | YES |
| warehouse | Anyang | Carphone Warehouse | +86-18637285401 | MOQ | 500kg |
| Inner diameter | 300/400/500MM | Whether it is laminated | YES | Tolerance | ± 0.01mm |
| Place available for sale | South Korea, the UAE, Vietnam, the Philippines, Indonesia, Thailand, Saudi Arabia, the UAE, Turkey, Russia, and so on. | Material | S31254, 254SMO, etc | Product hardness: | ANN, 1/4H, 1/2H, 3/4H, SEH, etc. |
254SMO Ultra-thin, Corrosion-resistant, High-temperature Precision Stainless Steel Strip—-Product Unit Weight and Dimensions：
Please contact customer service for other specifications.—-JBLstainless
| Grade/Digital code | Grade/digital code | C | Si | Mn | P | S | Ni | Cr | Mo | N | Cu | Product Modality | Welding Consumable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GB | S31252* | ≤0.020 | ≤0.80 | ≤1.00 | ≤0.030 | ≤0.010 | 17.50–18.50 | 19.50–20.50 | 6.00–6.50 | 0.18–0.22 | 0.50–1.00 | Sheet/bar/wire/steel strip | E(R)NiCrMo-3 |
| GB | 015Cr20Ni18Mo6CuN | ≤0.020 | ≤0.80 | ≤1.00 | ≤0.030 | ≤0.010 | 17.50–18.50 | 19.50–20.50 | 6.00–6.50 | 0.18–0.22 | 0.50–1.00 | Sheet/bar/wire/steel strip | E(R)NiCrMo-3 |
| GB | 00Cr20Ni18Mo6CuN | ≤0.020 | ≤0.80 | ≤1.00 | ≤0.030 | ≤0.010 | 17.50–18.50 | 19.50–20.50 | 6.00–6.50 | 0.18–0.22 | 0.50–1.00 | Sheet/bar/wire/steel strip | E(R)NiCrMo-3 |
| ASTM | F44 | ≤0.020 | ≤0.80 | ≤1.00 | ≤0.030 | ≤0.010 | 17.50–18.50 | 19.50–20.50 | 6.00–6.50 | 0.18–0.22 | 0.50–1.00 | Sheet/bar/wire/steel strip | E(R)NiCrMo-3 |
| UNS | S31254 | ≤0.020 | ≤0.80 | ≤1.00 | ≤0.030 | ≤0.010 | 17.50–18.50 | 19.50–20.50 | 6.00–6.50 | 0.18–0.22 | 0.50–1.00 | Sheet/bar/wire/steel strip | E(R)NiCrMo-3 |
| JIS | SUS312L | ≤0.020 | ≤0.80 | ≤1.00 | ≤0.030 | ≤0.015 | 17.50–19.00 | 19.50–21.00 | 6.00–7.00 | 0.16–0.25 | 0.50–1.00 | Sheet/bar/wire/steel strip | E(R)NiCrMo-3 |
| Sweden | 254SMO | ≤0.020 | ≤0.70 | ≤1.00 | ≤0.030 | ≤0.015 | 17.50–19.50 | 19.50–20.50 | 6.00–7.00 | 0.18–0.25 | 0.50–1.00 | Sheet/bar/wire/steel strip | E(R)NiCrMo-3 |
| EN | 1.4547 | ≤0.020 | ≤0.70 | ≤1.00 | ≤0.030 | ≤0.010 | 17.50–19.50 | 19.50–20.50 | 6.00–7.00 | 0.18–0.25 | 0.50–1.00 | Sheet/bar/wire/steel strip | E(R)NiCrMo-3 |
254 SMO Stainless Steel Strip — Physical Properties
Surface Treatment
Full-roll mirror or brushed finish; smooth and aesthetically pleasing surface.
Custom processing with ample supply.

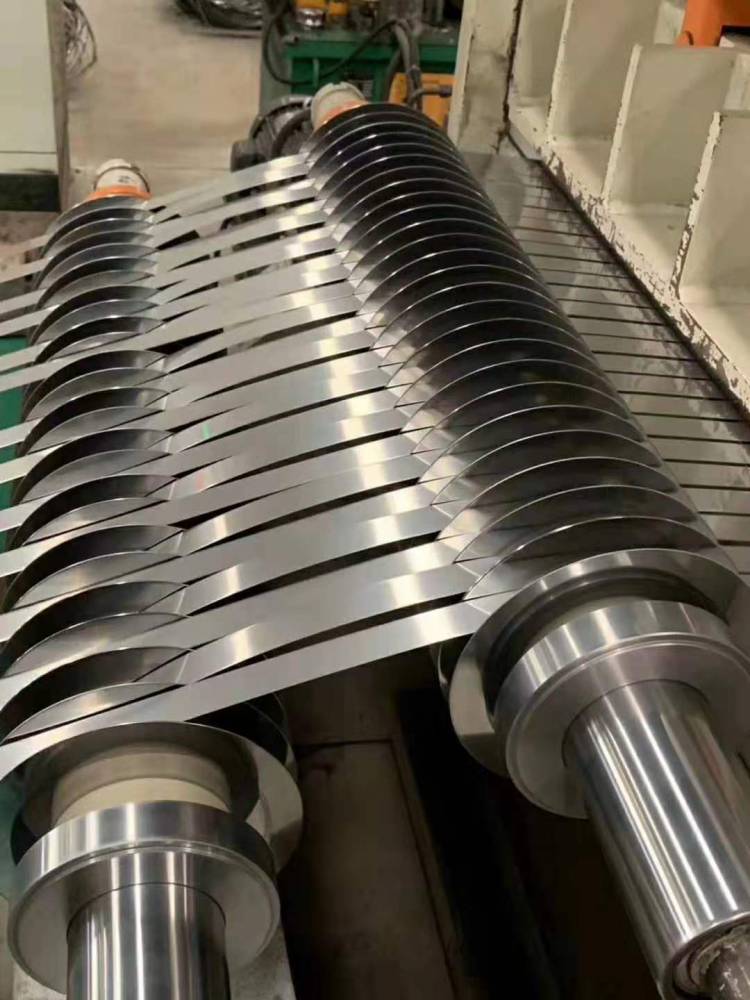

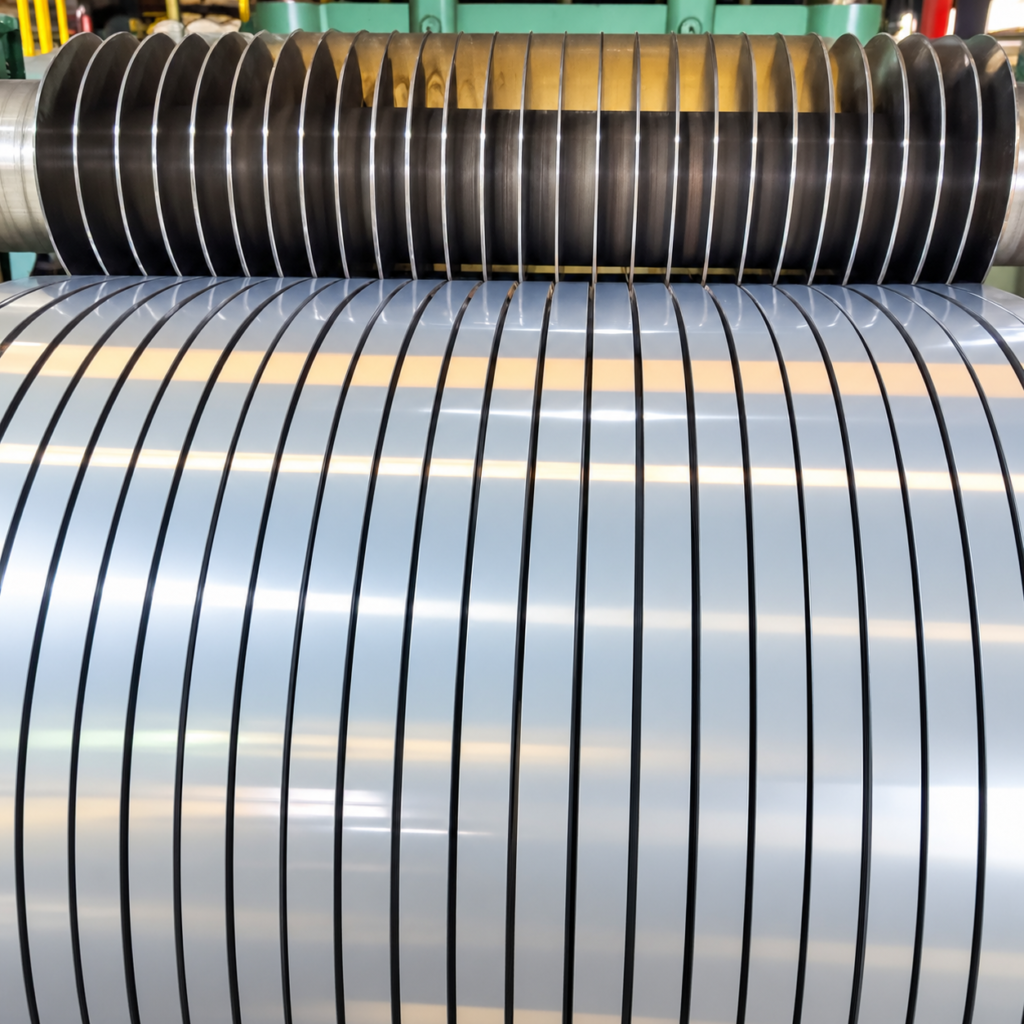

Expert production and precision slitting using imported cutting tools; minimum width as narrow as 2mm, minimum thickness as thin as 0.001mm.
Performance advantages of 254SMO stainless steel strip:
1) In seawater: Exhibits high resistance to crevice corrosion;
2) In acidic and oxidizing halide solutions: Demonstrates strong corrosion resistance;
3) High nitrogen content: Offers higher mechanical strength than other types of austenitic stainless steel;
4) High molybdenum content: Exhibits a higher oxidation rate during annealing;
Complete control over products allows us to ensure our customers receive the best quality prices and service. Contact us for a free quote,JBLSTEEL will provide the right solution for your project.
